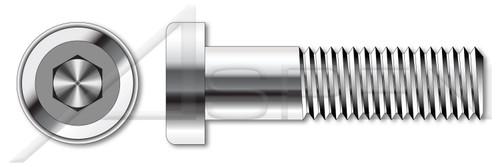

M20-2.5 X 40mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A4 Stainless Steel

M20-2.5 X 40mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A4 Stainless Steel

PART NUMBER:
ME493-2025X40-000025
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M20
  • Thread Pitch: 2.5
  • Diameter (Dimension): 20mm
  • Diameter (Minimum): 19.67mm
  • Diameter (Maximum): 20mm
  • Length (Nominal): 40mm
  • Thread Length (Nominal): 40mm
  • Drive Recess Size: 14mm
  • Drive Recess Width (Minimum): 14.03mm
  • Drive Recess Width (Maximum): 14.21mm
  • Drive Recess Depth: 7.5mm
  • Drive Recess Depth (Minimum): 7.32mm
  • Drive Recess Depth (Maximum): 7.68mm
  • Head Diameter: 30mm
  • Head Diameter (Minimum): 29.67mm
  • Head Diameter (Maximum): 30mm
  • Head Height, Overall: 11mm
  • Head Height, Overall (Minimum): 10.73mm
  • Head Height, Overall (Maximum): 11mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559669649
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Low Cylindrical Head
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
A4 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
DIN 7984
Diameter (Nominal):
M20
Diameter (Dimension):
20mm
Diameter (Minimum):
19.67mm
Diameter (Maximum):
20mm
Thread Pitch:
2.5
Length (Nominal):
40mm
Thread Length:
40mm
Recess Size:
14mm
Head Diameter:
30mm
Head Diameter (Minimum):
29.67mm
Head Diameter (Maximum):
30mm
Head Height, Overall:
11mm
Head Height, Overall (Minimum):
10.73mm
Head Height, Overall (Maximum):
11mm
POS:
ME493-2025X40-000025
Brand:
Aspen Fasteners(r)
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME493-2025X40
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME493-2025X40.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product51/ME493-2025X40.PDF
Thread Length (Nominal):
40mm
Drive Recess Depth:
7.5mm
Drive Recess Depth (Maximum):
7.68mm
Drive Recess Depth (Minimum):
7.32mm
Drive Recess Width (Maximum):
14.21mm
Origin:
Origin Undefined
Drive Recess Size:
14mm
Drive Recess Width (Minimum):
14.03mm
