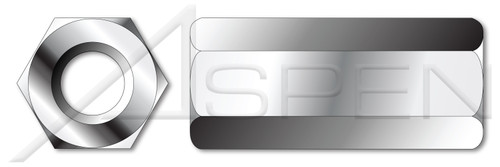

- Coupling nuts are also known as rod couplings or female thread adapters.
- Designed to join two externally threaded parts of equal thread diameter and pitch.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M20
- Thread Pitch: 2.5
- Diameter (Dimension): 20mm
- Thread Length (Nominal): 60mm
- Across Flats (Basic): 30mm
- Height (Basic): 60mm
PRODUCT ATTRIBUTES- Category: Coupling Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Double Chamfered and Double Countersunk
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: Art. 9071
Product UPC Code:
698435916531
- Brand:
- Aspen Fasteners
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME694-2025X60.zip
- Across Flats (Basic):
- 30mm
- Thread Pitch:
- 2.5
- Product Class:
- Internally Threaded Fasteners
- Drive Style:
- External Hex Drive
- Material Grade:
- A2 Stainless Steel
- Category:
- Coupling Nuts
- System of Measurement:
- Metric
- Shop by System of Measurement:
- Metric
- Height (Basic):
- 60mm
- Standards and Specifications:
- Art. 9071
- Shop by Material:
- Stainless Steel
- Thread Length (Nominal):
- 60mm
- Material:
- Stainless Steel
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product90/ME694-2025X60.PDF
- Diameter (Nominal):
- M20
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME694-2025X60
- Thread Direction:
- Right-Hand Thread
- Diameter (Dimension):
- 20mm
- Form and Design:
- Double Chamfered and Double Countersunk
- Thread Length:
- Full Thread
- Coating:
- Uncoated
- Order:
- Nuts
- POS:
- ME694-2025X60-000025
