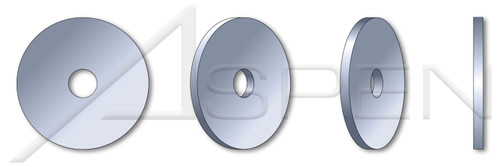

- Fender washers have a particularly large outside diameter in relation to the center hole.
- Fender washers are sometime referred to as Penny Washers.
- Use when a large bearing surface is required.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M20
- Diameter (Dimension): 20mm
- Inside Diameter (Nominal): 22mm
- Inside Diameter (Minimum): 22mm
- Inside Diameter (Maximum): 22.52mm
- Outside Diameter (Nominal): 60mm
- Outside Diameter (Minimum): 58.1mm
- Outside Diameter (Maximum): 60mm
- Thickness (Nominal): 4mm
- Thickness (Minimum): 3.4mm
- Thickness (Maximum): 4.6mm
PRODUCT ATTRIBUTES- Category: Fender Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: OD 3.0 X Diameter
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 9021 / ISO 7093
Product UPC Code:
692559765679
- Outside Diameter (Maximum):
- 60mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME382-20
- System of Measurement:
- Metric
- Thickness (Minimum):
- 3.4mm
- Thickness (Nominal):
- 4mm
- Coating Color:
- Clear
- Order:
- Flat Washers
- Inside Diameter (Minimum):
- 22mm
- Inside Diameter (Nominal):
- 22mm
- Outside Diameter (Nominal):
- 60mm
- Shop by System of Measurement:
- Metric
- Outside Diameter (Minimum):
- 58.1mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product83/ME382-20.PDF
- Category:
- Fender Washers
- Shop by Material:
- Steel
- Coating:
- Zinc Plated
- Form and Design:
- OD 3.0 X Diameter
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME382-20.zip
- Inside Diameter (Maximum):
- 22.52mm
- Material:
- Steel
- Diameter (Nominal):
- M20
- Brand:
- Aspen Fasteners
- Standards and Specifications:
- DIN 9021 / ISO 7093
- Product Class:
- Washers
- Thickness (Maximum):
- 4.6mm
- Diameter (Dimension):
- 20mm
- POS:
- ME382-20-00050
