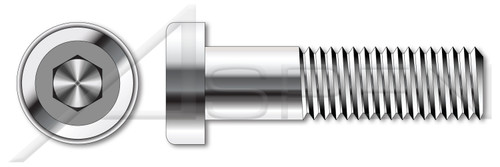

M24-3.0 X 45mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A2 Stainless Steel

M24-3.0 X 45mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A2 Stainless Steel

PART NUMBER:
ME340-2430X45-000010
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M24
  • Thread Pitch: 3.0
  • Diameter (Dimension): 24mm
  • Diameter (Minimum): 23.67mm
  • Diameter (Maximum): 24mm
  • Length (Nominal): 45mm
  • Thread Length (Nominal): 45mm
  • Drive Recess Size: 17mm
  • Drive Recess Width (Minimum): 17.05mm
  • Drive Recess Width (Maximum): 17.23mm
  • Drive Recess Depth: 8mm
  • Drive Recess Depth (Minimum): 7.82mm
  • Drive Recess Depth (Maximum): 8.18mm
  • Head Diameter: 36mm
  • Head Diameter (Minimum): 35.61mm
  • Head Diameter (Maximum): 36mm
  • Head Height, Overall: 13mm
  • Head Height, Overall (Minimum): 12.73mm
  • Head Height, Overall (Maximum): 13mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
698435881839
Head Style:
Low Cylindrical Head
Head Diameter (Maximum):
36mm
Head Height, Overall (Maximum):
13mm
Head Height, Overall (Minimum):
12.73mm
Head Height, Overall:
13mm
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
DIN 7984
Diameter (Nominal):
M24
Diameter (Dimension):
24mm
Diameter (Minimum):
23.67mm
Diameter (Maximum):
24mm
Thread Pitch:
3.0
Length (Nominal):
45mm
Thread Length:
45mm
Recess Size:
17mm
Head Diameter:
36mm
Head Diameter (Minimum):
35.61mm
POS:
ME340-2430X45-000010
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME340-2430X45.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME340-2430X45
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product88/ME340-2430X45.PDF
Drive Recess Depth (Minimum):
7.82mm
Drive Recess Depth:
8mm
Origin:
Origin Undefined
Drive Recess Width (Maximum):
17.23mm
Drive Recess Width (Minimum):
17.05mm
Drive Recess Size:
17mm
Thread Length (Nominal):
45mm
Drive Recess Depth (Maximum):
8.18mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M24
    • Thread Pitch: 3.0
    • Diameter (Dimension): 24mm
    • Diameter (Minimum): 23.67mm
    • Diameter (Maximum): 24mm
    • Length (Nominal): 45mm
    • Thread Length (Nominal): 45mm
    • Drive Recess Size: 17mm
    • Drive Recess Width (Minimum): 17.05mm
    • Drive Recess Width (Maximum): 17.23mm
    • Drive Recess Depth: 8mm
    • Drive Recess Depth (Minimum): 7.82mm
    • Drive Recess Depth (Maximum): 8.18mm
    • Head Diameter: 36mm
    • Head Diameter (Minimum): 35.61mm
    • Head Diameter (Maximum): 36mm
    • Head Height, Overall: 13mm
    • Head Height, Overall (Minimum): 12.73mm
    • Head Height, Overall (Maximum): 13mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    698435881839
