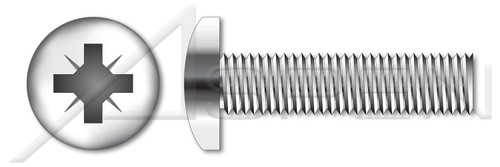

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
- Pan head screws are also known as raised cheese head screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M3
- Thread Pitch: 0.5
- Diameter (Dimension): 3mm
- Length (Nominal): 14mm
- Thread Length (Nominal): 14mm
- Drive Recess Size: #1
- Drive Recess Width: 3mm
- Drive Recess Depth (Minimum): 1.68mm
- Drive Recess Depth (Maximum): 1.93mm
- Head Diameter: 6mm
- Head Diameter (Minimum): 5.7mm
- Head Diameter (Maximum): 6mm
- Head Height, Overall: 2.4mm
- Head Height, Overall (Minimum): 2.28mm
- Head Height, Overall (Maximum): 2.52mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Pozidriv Type Z
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 7985A / ISO 7045
Product UPC Code:
692559689777
- Head Height, Overall (Minimum):
- 2.28mm
- Drive Recess Width:
- 3mm
- Order:
- Machine Thread Fasteners
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Head Diameter (Maximum):
- 6mm
- Diameter (Nominal):
- M3
- Standards and Specifications:
- DIN 7985A / ISO 7045
- Head Style:
- Pan Head
- Origin:
- Origin Undefined
- Head Diameter (Minimum):
- 5.7mm
- Shop by Material:
- Stainless Steel
- Coating:
- Uncoated
- Material Grade:
- A4 Stainless Steel
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME528-305X14.zip
- System of Measurement:
- Metric
- Length (Nominal):
- 14mm
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product54/ME528-305X14.PDF
- Head Diameter:
- 6mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME528-305X14
- Thread Length (Nominal):
- 14mm
- Head Height, Overall:
- 2.4mm
- Category:
- Machine Screws
- Diameter (Dimension):
- 3mm
- Brand:
- Aspen Fasteners
- Head Height, Overall (Maximum):
- 2.52mm
- Drive Style:
- Cruciform Recess Drive
- Drive Recess Size:
- #1
- Shop by System of Measurement:
- Metric
- Drive Detail:
- Pozidriv Type Z
- Thread Pitch:
- 0.5
- Material:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- POS:
- ME528-305X14-002000
