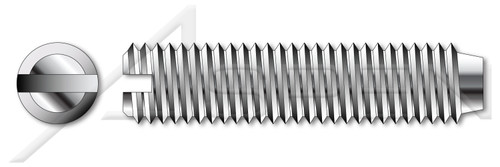

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M3
- Thread Pitch: 0.5
- Diameter (Dimension): 3mm
- Length (Nominal): 3mm
- Thread Length (Nominal): 3mm
- Point Width: 2mm
- Point Width (Minimum): 1.75mm
- Point Width (Maximum): 2mm
- Slot Depth (Minimum): 0.8mm
- Slot Depth (Maximum): 1.05mm
- Slot Width (Nominal): 0.4mm
- Slot Width (Minimum): 0.46mm
- Slot Width (Maximum): 0.6mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Flat Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 551 / ISO 4766
Product UPC Code:
692559477619
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME411-305X3
- Product Class:
- Externally Threaded Fasteners
- Material Grade:
- A2 Stainless Steel
- Slot Depth (Maximum):
- 1.05mm
- Coating:
- Uncoated
- Point Width (Minimum):
- 1.75mm
- Slot Depth (Minimum):
- 0.8mm
- Diameter (Nominal):
- M3
- Thread Pitch:
- 0.5
- Slot Width (Nominal):
- 0.4mm
- Diameter (Dimension):
- 3mm
- Thread Length (Nominal):
- 3mm
- Point:
- Flat Point
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product67/ME411-305X3.PDF
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- Point Width:
- 2mm
- Brand:
- Aspen Fasteners
- Shop by Material:
- Stainless Steel
- Shop by System of Measurement:
- Metric
- Category:
- Set Screws
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME411-305X3.zip
- Thread Length:
- Full Thread
- Standards and Specifications:
- DIN 551 / ISO 4766
- Head Style:
- Headless
- Material:
- Stainless Steel
- Slot Width (Minimum):
- 0.46mm
- System of Measurement:
- Metric
- Slot Width (Maximum):
- 0.6mm
- Thread Direction:
- Right-Hand Thread
- Point Width (Maximum):
- 2mm
- Length (Nominal):
- 3mm
- Drive Style:
- Slotted Drive
- POS:
- ME411-305X3-000600
