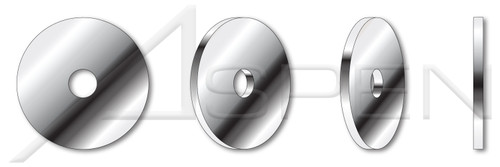

- Fender washers have a particularly large outside diameter in relation to the center hole.
- Fender washers are sometime referred to as Penny Washers.
- Use when a large bearing surface is required.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M3.5
- Diameter (Dimension): 3.5mm
- Inside Diameter (Nominal): 3.7mm
- Inside Diameter (Minimum): 3.7mm
- Inside Diameter (Maximum): 3.88mm
- Outside Diameter (Nominal): 11mm
- Outside Diameter (Minimum): 10.57mm
- Outside Diameter (Maximum): 11mm
- Thickness (Nominal): 0.8mm
- Thickness (Minimum): 0.7mm
- Thickness (Maximum): 0.9mm
PRODUCT ATTRIBUTES- Category: Fender Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: OD 3.0 X Diameter
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 9021 / ISO 7093
Product UPC Code:
692559637723
- Inside Diameter (Nominal):
- 3.7mm
- Thickness (Minimum):
- 0.7mm
- Shop by Material:
- Stainless Steel
- Diameter (Dimension):
- 3.5mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME380-35X37X11X08
- Inside Diameter (Minimum):
- 3.7mm
- Inside Diameter (Maximum):
- 3.88mm
- Shop by System of Measurement:
- Metric
- Material Grade:
- A2 Stainless Steel
- Outside Diameter (Maximum):
- 11mm
- Form and Design:
- OD 3.0 X Diameter
- Standards and Specifications:
- DIN 9021 / ISO 7093
- Thickness (Maximum):
- 0.9mm
- Brand:
- Aspen Fasteners
- Diameter (Nominal):
- M3.5
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME380-35X37X11X08.zip
- Order:
- Flat Washers
- Product Class:
- Washers
- Coating:
- Uncoated
- Material:
- Stainless Steel
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product83/ME380-35X37X11X08.PDF
- Thickness (Nominal):
- 0.8mm
- Category:
- Fender Washers
- Outside Diameter (Nominal):
- 11mm
- System of Measurement:
- Metric
- Outside Diameter (Minimum):
- 10.57mm
- POS:
- ME380-35X37X11X08-007000
