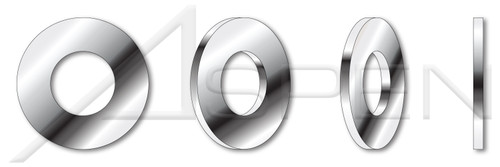

M4 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, A2 Stainless Steel

M4 DIN 125 Type A / ISO 7089-7090, Metric, Standard Flat Washers, A2 Stainless Steel

PART NUMBER:
ME057-4
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • DIN 125 / ISO 7089 are standard commercial metric flat washers.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M4
  • Diameter (Dimension): 4mm
  • Inside Diameter (Nominal): 4.3mm
  • Inside Diameter (Minimum): 4.3mm
  • Inside Diameter (Maximum): 4.48mm
  • Outside Diameter (Nominal): 9mm
  • Outside Diameter (Minimum): 8.64mm
  • Outside Diameter (Maximum): 9mm
  • Thickness (Nominal): 0.8mm
  • Thickness (Minimum): 0.7mm
  • Thickness (Maximum): 0.9mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Not Chamfered
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 125 Type A / ISO 7089
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME057-4.zip
Shop by System of Measurement:
Metric
Form and Design:
Not Chamfered
Standards and Specifications:
DIN 125 Type A / ISO 7089
Diameter (Dimension):
4mm
Thickness (Nominal):
0.8mm
Outside Diameter (Nominal):
9mm
Coating:
Uncoated
Brand:
Aspen Fasteners
Inside Diameter (Maximum):
4.48mm
System of Measurement:
Metric
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product82/ME057-4.PDF
Inside Diameter (Nominal):
4.3mm
Outside Diameter (Minimum):
8.64mm
Material:
Stainless Steel
Order:
Flat Washers
Outside Diameter (Maximum):
9mm
Thickness (Minimum):
0.7mm
Product Class:
Washers
Inside Diameter (Minimum):
4.3mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME057-4
Category:
Standard Flat Washers
Material Grade:
A2 Stainless Steel
Thickness (Maximum):
0.9mm
Diameter (Nominal):
M4
Shop by Material:
Stainless Steel
POS:
ME057-4X43X9X08-012000,ME057-4-010000,ME057-4-020000,ME057-4-07300
Print
  • Description
    • DIN 125 / ISO 7089 are standard commercial metric flat washers.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M4
    • Diameter (Dimension): 4mm
    • Inside Diameter (Nominal): 4.3mm
    • Inside Diameter (Minimum): 4.3mm
    • Inside Diameter (Maximum): 4.48mm
    • Outside Diameter (Nominal): 9mm
    • Outside Diameter (Minimum): 8.64mm
    • Outside Diameter (Maximum): 9mm
    • Thickness (Nominal): 0.8mm
    • Thickness (Minimum): 0.7mm
    • Thickness (Maximum): 0.9mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Not Chamfered
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 125 Type A / ISO 7089
  • 3D Product View
