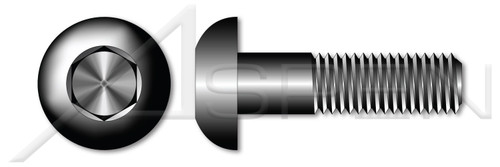

M5-0.8 X 15mm ISO 7380-1, Metric, Button Head Hex Socket Cap Screws, Holo-Krome, Class 12.9 Steel, Black Oxide

M5-0.8 X 15mm ISO 7380-1, Metric, Button Head Hex Socket Cap Screws, Holo-Krome, Class 12.9 Steel, Black Oxide

PART NUMBER:
HK001-508X15X3-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Superior quality parts by Holo-Krome, made in the U.S.A.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Button head screws have a wider bearing surface and maintain a low head profile.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.82mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 15mm
  • Thread Length (Nominal): 15mm
  • Drive Recess Size: 3mm
  • Drive Recess Width (Minimum): 3.02mm
  • Drive Recess Width (Maximum): 3.08mm
  • Drive Recess Depth: 1.56mm
  • Head Diameter: 9.5mm
  • Head Diameter (Minimum): 9.14mm
  • Head Diameter (Maximum): 9.5mm
  • Head Height, Overall: 2.75mm
  • Head Height, Overall (Minimum): 2.5mm
  • Head Height, Overall (Maximum): 2.75mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Holo-Krome®
  • Head Style: Button Head
  • Drive Style: Hex Socket Drive
  • Threading: Thread Class ANSI B1.13M
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 12.9 Steel
  • Material Processes: Heat Treated
  • Coating: Oxidized
  • Coating Color: Black
  • Origin: Made in U.S.A.
  • Standards and Specifications: ISO 7380-1
Product UPC Code:
692559870724
Head Diameter:
9.5mm
Material Processes:
Heat Treated
Diameter (Minimum):
4.82mm
Brand:
Holo-Krome(r)
Product Class:
Externally Threaded Fasteners
Head Height, Overall:
2.75mm
Shop by Material:
Steel
Shop by Application:
Socket Products
Drive Style:
Hex Socket Drive
Thread Pitch:
0.8
Head Height, Overall (Maximum):
2.75mm
Head Diameter (Maximum):
9.5mm
Category:
Socket Head Cap Screws
Thread Length:
Part Thread
Head Diameter (Minimum):
9.14mm
Coating Color:
Black
Standards and Specifications:
ISO 7380-1
Length (Nominal):
15mm
Shop by System of Measurement:
Metric
System of Measurement:
Metric
Coating:
Oxidized
Recess Size:
3mm
Origin:
Made in U.S.A.
Thread Direction:
Right-Hand Thread
Diameter (Dimension):
5mm
Head Style:
Button Head
Material Grade:
Class 12.9 Steel
Thread Length (Nominal):
15mm
Material:
Steel
Threading:
Thread Class ANSI B1.13M
Head Height, Overall (Minimum):
2.5mm
Diameter (Maximum):
5mm
Order:
Machine Thread Fasteners
Diameter (Nominal):
M5
POS:
HK001-508X15X3-000400
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/HK001-508X15X3.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/HK001-508X15X3
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product59/HK001-508X15X3.PDF
Drive Recess Width (Maximum):
3.08mm
Drive Recess Size:
3mm
Drive Recess Depth:
1.56mm
Drive Recess Width (Minimum):
3.02mm
Print
  • Description
    • Superior quality parts by Holo-Krome, made in the U.S.A.
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Button head screws have a wider bearing surface and maintain a low head profile.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Diameter (Minimum): 4.82mm
    • Diameter (Maximum): 5mm
    • Length (Nominal): 15mm
    • Thread Length (Nominal): 15mm
    • Drive Recess Size: 3mm
    • Drive Recess Width (Minimum): 3.02mm
    • Drive Recess Width (Maximum): 3.08mm
    • Drive Recess Depth: 1.56mm
    • Head Diameter: 9.5mm
    • Head Diameter (Minimum): 9.14mm
    • Head Diameter (Maximum): 9.5mm
    • Head Height, Overall: 2.75mm
    • Head Height, Overall (Minimum): 2.5mm
    • Head Height, Overall (Maximum): 2.75mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Holo-Krome®
    • Head Style: Button Head
    • Drive Style: Hex Socket Drive
    • Threading: Thread Class ANSI B1.13M
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 12.9 Steel
    • Material Processes: Heat Treated
    • Coating: Oxidized
    • Coating Color: Black
    • Origin: Made in U.S.A.
    • Standards and Specifications: ISO 7380-1
    Product UPC Code:
    692559870724
  • 3D Product View
