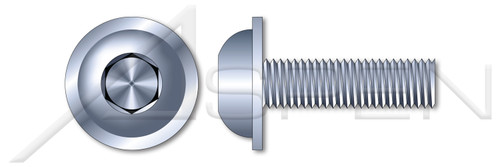

M5-0.8 X 16mm ISO 7380-2, Metric, Flanged Button Head Hex Socket Cap Screws, Full Thread, Class 10.9 Steel, Zinc Plated

M5-0.8 X 16mm ISO 7380-2, Metric, Flanged Button Head Hex Socket Cap Screws, Full Thread, Class 10.9 Steel, Zinc Plated

PART NUMBER:
ME338-508X16-00200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.82mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 16mm
  • Thread Length (Nominal): 16mm
  • Drive Recess Size: 3mm
  • Drive Recess Width (Minimum): 3.02mm
  • Drive Recess Width (Maximum): 3.08mm
  • Drive Recess Depth: 1.56mm
  • Head Diameter: 8.8mm
  • Head Diameter (Minimum): 8.4mm
  • Head Diameter (Maximum): 8.8mm
  • Head Height, Overall: 2.75mm
  • Head Height, Overall (Minimum): 2.5mm
  • Head Height, Overall (Maximum): 2.75mm
  • Flange Diameter: 11.8mm
  • Flange Diameter (Minimum): 11.1mm
  • Flange Diameter (Maximum): 11.8mm
  • Flange Thickness: 1mm
  • Flange Thickness (Minimum): 0.8mm
  • Flange Thickness (Maximum): 1mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Button Head with Flange
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 10.9 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: ISO 7380-2
Product UPC Code:
698435244467
Flange Diameter (Maximum):
11.8mm
Head Style:
Button Head with Flange
Shop by Material:
Steel
Head Diameter (Minimum):
8.4mm
Head Height, Overall (Maximum):
2.75mm
Brand:
Aspen Fasteners
Standards and Specifications:
ISO 7380-2
Thread Direction:
Right-Hand Thread
Shop by System of Measurement:
Metric
Head Height, Overall (Minimum):
2.5mm
Product Class:
Externally Threaded Fasteners
Head Diameter:
8.8mm
Thread Length:
Full Thread
Diameter (Dimension):
5mm
Diameter (Nominal):
M5
Diameter (Minimum):
4.82mm
Head Height, Overall:
2.75mm
Flange Diameter (Minimum):
11.1mm
Head Diameter (Maximum):
8.8mm
Drive Style:
Hex Socket Drive
Material:
Steel
Flange Thickness (Minimum):
0.8mm
Length (Nominal):
16mm
Flange Diameter:
11.8mm
Order:
Machine Thread Fasteners
Diameter (Maximum):
5mm
Material Grade:
Class 10.9 Steel
Coating Color:
Clear
Coating:
Zinc Plated
Category:
Socket Head Cap Screws
Flange Thickness (Maximum):
1mm
Thread Length:
16mm
Shop by Application:
Socket Products
Thread Pitch:
0.8
Flange Thickness:
1mm
Recess Size:
3mm
System of Measurement:
Metric
POS:
ME338-508X16-00200
Brand:
Aspen Fasteners(r)
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME338-508X16
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME338-508X16.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME338-508X16.PDF
Thread Length (Nominal):
16mm
Drive Recess Depth:
1.56mm
Origin:
Origin Undefined
Drive Recess Width (Maximum):
3.08mm
Drive Recess Width (Minimum):
3.02mm
Drive Recess Size:
3mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
