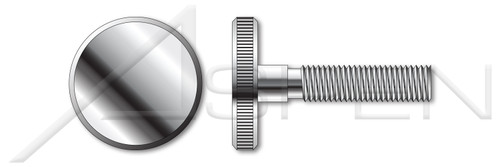

- A thumb screw is designed to be turned using a thumb and finger.
- Knurls on the side of the head improves the grip.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Diameter (Minimum): 4.82mm
- Diameter (Maximum): 5mm
- Length (Nominal): 18mm
- Thread Length (Nominal): 18mm
- Head Diameter: 20mm
- Head Diameter (Minimum): 19.58mm
- Head Diameter (Maximum): 20.42mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 3.7mm
- Head Height, Overall (Maximum): 4mm
PRODUCT ATTRIBUTES- Category: Thumb Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Knurled Flat Head
- Head Style Detail: Low Type
- Drive Style: Thumb Drive
- Pitch: Coarse Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 303 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 653
Product UPC Code:
698435892040
- Drive Style:
- Thumb Drive
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Thumb Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Head Style:
- Knurled Flat Head
- Head Style Detail:
- Low Type
- Pitch:
- Coarse Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- 303 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 653
- Diameter (Nominal):
- M5
- Diameter (Dimension):
- 5mm
- Diameter (Minimum):
- 4.82mm
- Diameter (Maximum):
- 5mm
- Thread Pitch:
- 0.8
- Length (Nominal):
- 18mm
- Head Diameter:
- 20mm
- Head Diameter (Minimum):
- 19.58mm
- Head Diameter (Maximum):
- 20.42mm
- Head Height, Overall:
- 4mm
- Head Height, Overall (Minimum):
- 3.7mm
- Head Height, Overall (Maximum):
- 4mm
- Shop by Material:
- Stainless Steel
- Shop by System of Measurement:
- Metric
- Origin:
- Origin Undefined
- Thread Length (Nominal):
- 18mm
