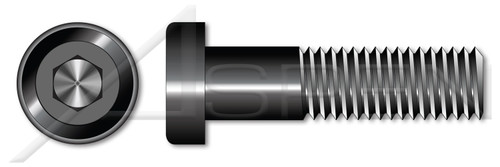

M5-0.8 X 50mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

M5-0.8 X 50mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

PART NUMBER:
ME339-508X50-00150
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.82mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 50mm
  • Thread Length (Nominal): 16mm
  • Drive Recess Size: 3mm
  • Drive Recess Width (Minimum): 3.02mm
  • Drive Recess Width (Maximum): 3.1mm
  • Drive Recess Depth: 2.7mm
  • Drive Recess Depth (Minimum): 2.58mm
  • Drive Recess Depth (Maximum): 2.82mm
  • Head Diameter: 8.5mm
  • Head Diameter (Minimum): 8.28mm
  • Head Diameter (Maximum): 8.5mm
  • Head Height, Overall: 3.5mm
  • Head Height, Overall (Minimum): 3.32mm
  • Head Height, Overall (Maximum): 3.5mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559888682
Head Height, Overall (Minimum):
3.32mm
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Metric
Material Grade:
Class 8.8 Steel
Diameter (Dimension):
5mm
Coating:
Uncoated
Head Height, Overall (Maximum):
3.5mm
Head Style:
Low Cylindrical Head
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Thread Direction:
Right-Hand Thread
Product Class:
Externally Threaded Fasteners
Material:
Steel
Thread Length:
16mm
Recess Size:
3mm
Head Diameter:
8.5mm
Head Diameter (Minimum):
8.28mm
Head Diameter (Maximum):
8.5mm
Diameter (Minimum):
4.82mm
Diameter (Maximum):
5mm
Thread Pitch:
0.8
Length (Nominal):
50mm
Diameter (Nominal):
M5
Drive Style:
Hex Socket Drive
Head Height, Overall:
3.5mm
Standards and Specifications:
DIN 7984
POS:
ME339-508X50-00150
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME339-508X50.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME339-508X50.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME339-508X50
Drive Recess Size:
3mm
Thread Length (Nominal):
16mm
Drive Recess Width (Maximum):
3.1mm
Origin:
Origin Undefined
Drive Recess Depth (Minimum):
2.58mm
Drive Recess Depth (Maximum):
2.82mm
Drive Recess Width (Minimum):
3.02mm
Drive Recess Depth:
2.7mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Diameter (Minimum): 4.82mm
    • Diameter (Maximum): 5mm
    • Length (Nominal): 50mm
    • Thread Length (Nominal): 16mm
    • Drive Recess Size: 3mm
    • Drive Recess Width (Minimum): 3.02mm
    • Drive Recess Width (Maximum): 3.1mm
    • Drive Recess Depth: 2.7mm
    • Drive Recess Depth (Minimum): 2.58mm
    • Drive Recess Depth (Maximum): 2.82mm
    • Head Diameter: 8.5mm
    • Head Diameter (Minimum): 8.28mm
    • Head Diameter (Maximum): 8.5mm
    • Head Height, Overall: 3.5mm
    • Head Height, Overall (Minimum): 3.32mm
    • Head Height, Overall (Maximum): 3.5mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    692559888682
