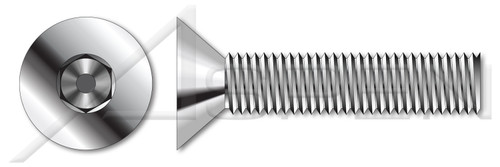

M5-0.8 X 65mm DIN 7991 / ISO 10642, Metric, Flat Head Socket Cap Screws, Full Thread, A4 Stainless Steel

M5-0.8 X 65mm DIN 7991 / ISO 10642, Metric, Flat Head Socket Cap Screws, Full Thread, A4 Stainless Steel

PART NUMBER:
ME300-508X65-000200
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.82mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 65mm
  • Thread Length (Nominal): 62.2mm
  • Drive Recess Size: 3mm
  • Drive Recess Width: 3mm
  • Drive Recess Width (Minimum): 3.02mm
  • Drive Recess Width (Maximum): 3.1mm
  • Drive Recess Depth: 2.3mm
  • Drive Recess Depth (Minimum): 2.05mm
  • Drive Recess Depth (Maximum): 2.3mm
  • Head Diameter: 10mm
  • Head Diameter (Minimum): 9.64mm
  • Head Diameter (Maximum): 10mm
  • Head Height, Overall: 2.8mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7991 / ISO 10642
Product UPC Code:
692559627663
Brand:
Aspen Fasteners
Head Height, Overall:
2.8mm
Category:
Socket Head Cap Screws
Coating:
Uncoated
Head Diameter (Maximum):
10mm
Thread Length:
Full Thread
System of Measurement:
Metric
Drive Recess Width:
3mm
Diameter (Maximum):
5mm
Origin:
Origin Undefined
Thread Direction:
Right-Hand Thread
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME300-508X65.zip
Drive Style:
Hex Socket Drive
Material Grade:
A4 Stainless Steel
Drive Recess Depth:
2.3mm
Head Style Detail:
90 Degree Countersink
Diameter (Minimum):
4.82mm
Shop by System of Measurement:
Metric
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 7991 / ISO 10642
Head Diameter (Minimum):
9.64mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME300-508X65
Head Style:
Flat Countersunk Head
Drive Recess Size:
3mm
Diameter (Dimension):
5mm
Material:
Stainless Steel
Shop by Material:
Stainless Steel
Shop by Application:
Socket Products
Diameter (Nominal):
M5
Length (Nominal):
65mm
Thread Pitch:
0.8
Thread Length (Nominal):
62.2mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME300-508X65.PDF
Head Diameter:
10mm
POS:
ME300-508X65-000200
Drive Recess Width (Minimum):
3.02mm
Drive Recess Depth (Minimum):
2.05mm
Drive Recess Width (Maximum):
3.1mm
Drive Recess Depth (Maximum):
2.3mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • An internal hex socket drive is also known as an Allen drive.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Diameter (Minimum): 4.82mm
    • Diameter (Maximum): 5mm
    • Length (Nominal): 65mm
    • Thread Length (Nominal): 62.2mm
    • Drive Recess Size: 3mm
    • Drive Recess Width: 3mm
    • Drive Recess Width (Minimum): 3.02mm
    • Drive Recess Width (Maximum): 3.1mm
    • Drive Recess Depth: 2.3mm
    • Drive Recess Depth (Minimum): 2.05mm
    • Drive Recess Depth (Maximum): 2.3mm
    • Head Diameter: 10mm
    • Head Diameter (Minimum): 9.64mm
    • Head Diameter (Maximum): 10mm
    • Head Height, Overall: 2.8mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7991 / ISO 10642
    Product UPC Code:
    692559627663
  • 3D Product View

Contact us for availability information on part number ME300-508X65-000200. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
