- Also known as clevis pin spacing washers, used to adjust the grip length of the pin.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Inside Diameter (Nominal): 5mm
- Inside Diameter (Minimum): 5mm
- Inside Diameter (Maximum): 5.08mm
- Outside Diameter (Nominal): 10mm
- Outside Diameter (Minimum): 9.64mm
- Outside Diameter (Maximum): 10mm
- Thickness (Nominal): 0.8mm
- Thickness (Minimum): 0.7mm
- Thickness (Maximum): 0.9mm

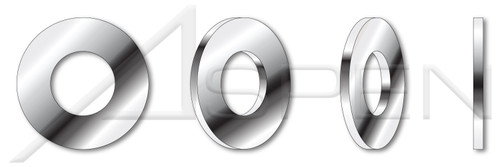

PRODUCT ATTRIBUTES- Category: Flat Washers for Clevis Pins
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Medium Finish
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 1440 / ISO 8738
Product UPC Code:
692559708768
