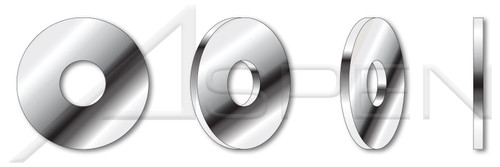

M5 DIN 433 / ISO 7092, Metric, Flat Washers, Small Outside Diameter, A4 Stainless Steel

M5 DIN 433 / ISO 7092, Metric, Flat Washers, Small Outside Diameter, A4 Stainless Steel

PART NUMBER:
ME352-5X53X9X1
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Diameter (Dimension): 5mm
  • Inside Diameter (Nominal): 5.3mm
  • Inside Diameter (Minimum): 5.3mm
  • Inside Diameter (Maximum): 5.48mm
  • Outside Diameter (Nominal): 9mm
  • Outside Diameter (Minimum): 8.64mm
  • Outside Diameter (Maximum): 9mm
  • Thickness (Nominal): 1mm
  • Thickness (Minimum): 0.9mm
  • Thickness (Maximum): 1.1mm
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: Small Outside Diameter
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 433 / ISO 7092
Category:
Standard Flat Washers
Standards and Specifications:
DIN 433 / ISO 7092
Inside Diameter (Minimum):
5.3mm
Outside Diameter (Minimum):
8.64mm
Material:
Stainless Steel
Diameter (Dimension):
5mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME352-5X53X9X1
Outside Diameter (Maximum):
9mm
Inside Diameter (Nominal):
5.3mm
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Diameter (Nominal):
M5
Form and Design:
Small Outside Diameter
Outside Diameter (Nominal):
9mm
Inside Diameter (Maximum):
5.48mm
Thickness (Minimum):
0.9mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product82/ME352-5X53X9X1.PDF
Product Class:
Washers
Material Grade:
A4 Stainless Steel
Brand:
Aspen Fasteners
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME352-5X53X9X1.zip
Coating:
Uncoated
Thickness (Maximum):
1.1mm
Thickness (Nominal):
1mm
Order:
Flat Washers
System of Measurement:
Metric
POS:
ME352-5-01600,ME352-5X53X9X1-008000
Print
  • Description
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Diameter (Dimension): 5mm
    • Inside Diameter (Nominal): 5.3mm
    • Inside Diameter (Minimum): 5.3mm
    • Inside Diameter (Maximum): 5.48mm
    • Outside Diameter (Nominal): 9mm
    • Outside Diameter (Minimum): 8.64mm
    • Outside Diameter (Maximum): 9mm
    • Thickness (Nominal): 1mm
    • Thickness (Minimum): 0.9mm
    • Thickness (Maximum): 1.1mm
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: Small Outside Diameter
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 433 / ISO 7092
  • 3D Product View
