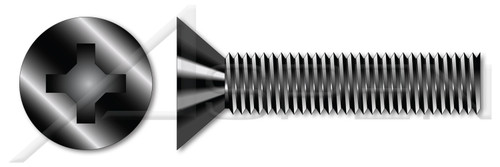

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Length (Nominal): 14mm
- Thread Length (Nominal): 11mm
- Drive Recess Size: #3
- Drive Recess Width: 6.6mm
- Drive Recess Depth (Minimum): 2.8mm
- Drive Recess Depth (Maximum): 3.3mm
- Head Diameter: 11mm
- Head Diameter (Minimum): 10.57mm
- Head Diameter (Maximum): 11mm
- Head Height, Overall: 3mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Oxidized
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: DIN 965 / ISO 7046
