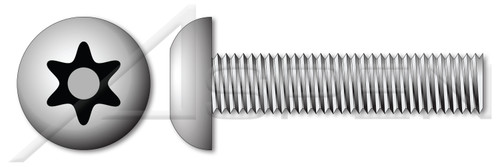

M6-1.0 X 16mm Machine Screws, Metric, Button Head Tamper-Resistant 6Lobe Torx(r) Pin Drive, Stainless Steel, Includes Driver Bit

M6-1.0 X 16mm Machine Screws, Metric, Button Head Tamper-Resistant 6Lobe Torx(r) Pin Drive, Stainless Steel, Includes Driver Bit

PART NUMBER:
TR022-610X16
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Button head screws have a wider bearing surface and maintain a low head profile.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Length (Nominal): 16mm
  • Drive Recess Size: T27
  • Head Diameter: 10.5mm
  • Head Height, Overall: 3.3mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Button Head
  • Drive Style: Tamper-Resistant 6Lobe Pin Drive
  • Drive Detail: Torx® Brand
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 302 Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.3.4M
Head Style:
Button Head
Drive Style:
Tamper-Resistant 6Lobe Pin Drive
Drive Detail:
Torx(r) Brand
Thread Length:
Full Thread
Material Grade:
302 Stainless Steel
Coating:
Uncoated
Origin:
Made in U.S.A.
Standards and Specifications:
ASME B18.3.4M
Diameter (Nominal):
M6
Thread Direction:
Right-Hand Thread
Diameter (Dimension):
6mm
Thread Pitch:
1.0
Length (Nominal):
16mm
Head Diameter:
10.5mm
Material:
Stainless Steel
Head Height, Overall:
3.3mm
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by Application:
Tamper-Resistant Security Fasteners
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Machine Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Drive Recess Size:
T27
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/TR022-610X16
POS:
TR022-610X16-01000,TR022-610X16-00100,TR022-610X16-02500,TR022-610X16-0000200
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Button head screws have a wider bearing surface and maintain a low head profile.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Length (Nominal): 16mm
    • Drive Recess Size: T27
    • Head Diameter: 10.5mm
    • Head Height, Overall: 3.3mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Button Head
    • Drive Style: Tamper-Resistant 6Lobe Pin Drive
    • Drive Detail: Torx® Brand
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: 302 Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.3.4M

Contact us for availability information on part number TR022-610X16. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
