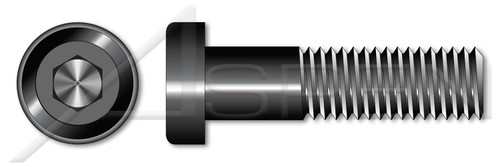

M6-1.0 X 40mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

M6-1.0 X 40mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

PART NUMBER:
ME339-610X40-00100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Diameter (Minimum): 5.82mm
  • Diameter (Maximum): 6mm
  • Length (Nominal): 40mm
  • Thread Length (Nominal): 18mm
  • Drive Recess Size: 4mm
  • Drive Recess Width (Minimum): 4.02mm
  • Drive Recess Width (Maximum): 4.12mm
  • Drive Recess Depth: 3mm
  • Drive Recess Depth (Minimum): 2.88mm
  • Drive Recess Depth (Maximum): 3.12mm
  • Head Diameter: 10mm
  • Head Diameter (Minimum): 9.78mm
  • Head Diameter (Maximum): 10mm
  • Head Height, Overall: 4mm
  • Head Height, Overall (Minimum): 3.82mm
  • Head Height, Overall (Maximum): 4mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559888798
Order:
Machine Thread Fasteners
Brand:
Aspen Fasteners
Diameter (Minimum):
5.82mm
Diameter (Dimension):
6mm
Diameter (Nominal):
M6
Standards and Specifications:
DIN 7984
System of Measurement:
Metric
Head Height, Overall (Maximum):
4mm
Head Height, Overall (Minimum):
3.82mm
Head Height, Overall:
4mm
Head Diameter (Maximum):
10mm
Head Style:
Low Cylindrical Head
Head Diameter (Minimum):
9.78mm
Head Diameter:
10mm
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Class 8.8 Steel
Coating:
Uncoated
Category:
Socket Head Cap Screws
Shop by System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Diameter (Maximum):
6mm
Thread Pitch:
1.0
Length (Nominal):
40mm
Thread Length:
18mm
Recess Size:
4mm
POS:
ME339-610X40-00100
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME339-610X40.zip
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME339-610X40.PDF
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME339-610X40
Origin:
Origin Undefined
Drive Recess Depth:
3mm
Drive Recess Width (Maximum):
4.12mm
Drive Recess Depth (Maximum):
3.12mm
Drive Recess Width (Minimum):
4.02mm
Thread Length (Nominal):
18mm
Drive Recess Size:
4mm
Drive Recess Depth (Minimum):
2.88mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Diameter (Minimum): 5.82mm
    • Diameter (Maximum): 6mm
    • Length (Nominal): 40mm
    • Thread Length (Nominal): 18mm
    • Drive Recess Size: 4mm
    • Drive Recess Width (Minimum): 4.02mm
    • Drive Recess Width (Maximum): 4.12mm
    • Drive Recess Depth: 3mm
    • Drive Recess Depth (Minimum): 2.88mm
    • Drive Recess Depth (Maximum): 3.12mm
    • Head Diameter: 10mm
    • Head Diameter (Minimum): 9.78mm
    • Head Diameter (Maximum): 10mm
    • Head Height, Overall: 4mm
    • Head Height, Overall (Minimum): 3.82mm
    • Head Height, Overall (Maximum): 4mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    692559888798
