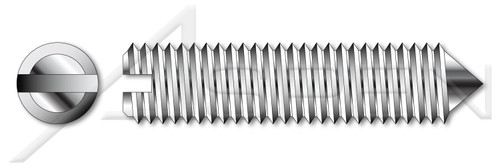

- Holds an object in place via friction between the point of the screw and the fastened material.
- Headless set screws are also known as blind screws or grub screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Length (Nominal): 6mm
- Thread Length (Nominal): 6mm
- Point Width: 1.5mm
- Slot Depth (Minimum): 1.6mm
- Slot Depth (Maximum): 2mm
- Slot Width (Nominal): 1mm
- Slot Width (Minimum): 1.06mm
- Slot Width (Maximum): 1.2mm
PRODUCT ATTRIBUTES- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Headless
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cone Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 553 / ISO 7434
Product UPC Code:
692559480886
- Thread Length (Nominal):
- 6mm
- Slot Width (Maximum):
- 1.2mm
- Head Style:
- Headless
- Thread Length:
- Full Thread
- System of Measurement:
- Metric
- Point:
- Cone Point
- Length (Nominal):
- 6mm
- Diameter (Nominal):
- M6
- Point Width:
- 1.5mm
- Brand:
- Aspen Fasteners
- Slot Depth (Maximum):
- 2mm
- Standards and Specifications:
- DIN 553 / ISO 7434
- Origin:
- Origin Undefined
- Order:
- Machine Thread Fasteners
- Slot Width (Minimum):
- 1.06mm
- Shop by System of Measurement:
- Metric
- Category:
- Set Screws
- Slot Width (Nominal):
- 1mm
- Thread Pitch:
- 1.0
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Stainless Steel
- Thread Direction:
- Right-Hand Thread
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product54/ME541-610X6.PDF
- Diameter (Dimension):
- 6mm
- Slot Depth (Minimum):
- 1.6mm
- Coating:
- Uncoated
- Material:
- Stainless Steel
- Material Grade:
- A4 Stainless Steel
- Drive Style:
- Slotted Drive
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME541-610X6
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME541-610X6.zip
- POS:
- ME541-610X6-000200
