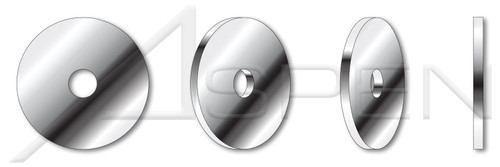

M6 DIN 9021 / ISO 7093, Metric, Fender Washers, A4 Stainless Steel

M6 DIN 9021 / ISO 7093, Metric, Fender Washers, A4 Stainless Steel

PART NUMBER:
ME381-6X64X18X16
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Fender washers have a particularly large outside diameter in relation to the center hole.
  • Fender washers are sometime referred to as Penny Washers.
  • Use when a large bearing surface is required.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Diameter (Dimension): 6mm
  • Inside Diameter (Nominal): 6.4mm
  • Inside Diameter (Minimum): 6.4mm
  • Inside Diameter (Maximum): 6.62mm
  • Outside Diameter (Nominal): 18mm
  • Outside Diameter (Minimum): 17.57mm
  • Outside Diameter (Maximum): 18mm
  • Thickness (Nominal): 1.6mm
  • Thickness (Minimum): 1.4mm
  • Thickness (Maximum): 1.8mm
PRODUCT ATTRIBUTES
  • Category: Fender Washers
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Form and Design: OD 3.0 X Diameter
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 9021 / ISO 7093
Inside Diameter (Nominal):
6.4mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME381-6X64X18X16
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME381-6X64X18X16.zip
System of Measurement:
Metric
Thickness (Nominal):
1.6mm
Form and Design:
OD 3.0 X Diameter
Material Grade:
A4 Stainless Steel
Outside Diameter (Nominal):
18mm
Brand:
Aspen Fasteners
Standards and Specifications:
DIN 9021 / ISO 7093
Inside Diameter (Maximum):
6.62mm
Diameter (Nominal):
M6
Category:
Fender Washers
Product Class:
Washers
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product83/ME381-6X64X18X16.PDF
Shop by System of Measurement:
Metric
Coating:
Uncoated
Inside Diameter (Minimum):
6.4mm
Order:
Flat Washers
Outside Diameter (Minimum):
17.57mm
Material:
Stainless Steel
Thickness (Minimum):
1.4mm
Diameter (Dimension):
6mm
Outside Diameter (Maximum):
18mm
Shop by Material:
Stainless Steel
Thickness (Maximum):
1.8mm
POS:
ME381-6-00300,ME381-6X64X18X16-002000
Print
  • Description
    • Fender washers have a particularly large outside diameter in relation to the center hole.
    • Fender washers are sometime referred to as Penny Washers.
    • Use when a large bearing surface is required.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Diameter (Dimension): 6mm
    • Inside Diameter (Nominal): 6.4mm
    • Inside Diameter (Minimum): 6.4mm
    • Inside Diameter (Maximum): 6.62mm
    • Outside Diameter (Nominal): 18mm
    • Outside Diameter (Minimum): 17.57mm
    • Outside Diameter (Maximum): 18mm
    • Thickness (Nominal): 1.6mm
    • Thickness (Minimum): 1.4mm
    • Thickness (Maximum): 1.8mm
    PRODUCT ATTRIBUTES
    • Category: Fender Washers
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Form and Design: OD 3.0 X Diameter
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 9021 / ISO 7093
