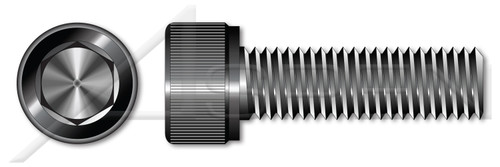

M8-1.25 X 30mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Full Thread, Class 12.9 Steel, Made in U.S.A.

M8-1.25 X 30mm DIN 912 / ISO 4762 and ASTM A574M, Metric, Socket Head Cap Screws, Hex Socket Drive, Full Thread, Class 12.9 Steel, Made in U.S.A.

PART NUMBER:
ME088-8125X30
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M8
  • Thread Pitch: 1.25
  • Diameter (Dimension): 8mm
  • Diameter (Minimum): 7.78mm
  • Diameter (Maximum): 8mm
  • Length (Nominal): 30mm
  • Thread Length (Nominal): 28mm
  • Drive Recess Size: 6mm
  • Drive Recess Width: 6mm
  • Drive Recess Width (Minimum): 6.02mm
  • Drive Recess Width (Maximum): 6.14mm
  • Drive Recess Depth: 4mm
  • Head Diameter: 13mm
  • Head Diameter (Minimum): 12.73mm
  • Head Diameter (Maximum): 13mm
  • Head Height, Overall: 8mm
  • Head Height, Overall (Minimum): 7.64mm
  • Head Height, Overall (Maximum): 8mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 12.9 Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
  • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
Length (Nominal):
30mm
Thread Pitch:
1.25
Diameter (Nominal):
M8
Standards and Specifications:
ASTM A574M
Origin:
Made in U.S.A.
Coating:
Uncoated
Material Grade:
Class 12.9 Steel
Material:
Steel
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Drive Style:
Hex Socket Drive
Head Style:
Cylindrical Head
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Metric
POS:
ME088-8125X30-001200,ME088-8125X30-000500
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME088-8125X30.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME088-8125X30
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product61/ME088-8125X30.PDF
Head Diameter (Minimum):
12.73mm
Diameter (Minimum):
7.78mm
Head Height, Overall (Minimum):
7.64mm
Head Height, Overall (Maximum):
8mm
Diameter (Maximum):
8mm
Drive Recess Depth:
4mm
Head Diameter (Maximum):
13mm
POS:
ME088-8125X30-000500,ME088-8125X30-001200
Drive Recess Size:
6mm
Head Diameter:
13mm
Drive Recess Width (Minimum):
6.02mm
Drive Recess Width:
6mm
Drive Recess Width (Maximum):
6.14mm
Head Height, Overall:
8mm
Thread Length (Nominal):
28mm
Standards and Specifications:
DIN 912 / ISO 4762 and ASTM A574M
Diameter (Dimension):
8mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M8
    • Thread Pitch: 1.25
    • Diameter (Dimension): 8mm
    • Diameter (Minimum): 7.78mm
    • Diameter (Maximum): 8mm
    • Length (Nominal): 30mm
    • Thread Length (Nominal): 28mm
    • Drive Recess Size: 6mm
    • Drive Recess Width: 6mm
    • Drive Recess Width (Minimum): 6.02mm
    • Drive Recess Width (Maximum): 6.14mm
    • Drive Recess Depth: 4mm
    • Head Diameter: 13mm
    • Head Diameter (Minimum): 12.73mm
    • Head Diameter (Maximum): 13mm
    • Head Height, Overall: 8mm
    • Head Height, Overall (Minimum): 7.64mm
    • Head Height, Overall (Maximum): 8mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 12.9 Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
    • Standards and Specifications: DIN 912 / ISO 4762 and ASTM A574M
