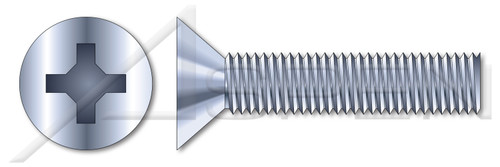

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Length (Nominal): 55mm
- Thread Length (Nominal): 51mm
- Drive Recess Size: #4
- Drive Recess Width: 8.7mm
- Drive Recess Depth (Minimum): 3.9mm
- Drive Recess Depth (Maximum): 4.4mm
- Head Diameter: 14.5mm
- Head Diameter (Minimum): 14.07mm
- Head Diameter (Maximum): 14.5mm
- Head Height, Overall: 4mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
698435166820
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Zinc Plated
- Coating Color:
- Clear
- Diameter (Dimension):
- 8mm
- Diameter (Nominal):
- M8
- Drive Detail:
- Phillips Type H
- Drive Recess Size:
- #4
- Drive Recess Width:
- 8.7mm
- Drive Style:
- Cruciform Recess Drive
- Head Diameter:
- 14.5mm
- Head Diameter (Maximum):
- 14.5mm
- Head Diameter (Minimum):
- 14.07mm
- Head Height, Overall:
- 4mm
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 90 Degree Countersink
- Length (Nominal):
- 55mm
- Material:
- Steel
- Material Grade:
- Class 4.8 Steel
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 965 / ISO 7046
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Length (Nominal):
- 51mm
- Thread Pitch:
- 1.25
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME026-8125X55.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME026-8125X55
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product60/ME026-8125X55.PDF
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Metric
- Drive Recess Depth (Maximum):
- 4.4mm
- Drive Recess Depth (Minimum):
- 3.9mm
- POS:
- ME026-8125X55-00050
