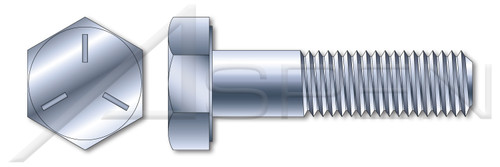

1-1/2"-6 X 5" Hex Head Cap Screws Bolts, UNC Coarse Thread, Grade 5 Steel, Zinc, Made in U.S.A.

1-1/2"-6 X 5" Hex Head Cap Screws Bolts, UNC Coarse Thread, Grade 5 Steel, Zinc, Made in U.S.A.

PART NUMBER:
BO016-1126X5
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
  • The washer face under the head provides a precision bearing surface.
  • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1-1/2"
  • Thread Pitch: 6
  • Diameter (Dimension): 1.5"
  • Diameter (Minimum): 1.488"
  • Diameter (Maximum): 1.500"
  • Length (Nominal): 5"
  • Thread Length (Nominal): 3.25"
  • Across Flats (Basic): 2-1/4"
  • Across Flats (Minimum): 2.175"
  • Across Flats (Maximum): 2.250"
  • Head Height, Overall: 15/16"
  • Head Height, Overall (Minimum): 0.902"
  • Head Height, Overall (Maximum): 0.974"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
  • Drive Style: External Hex Drive
  • Pitch: UNC Coarse Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Grade 5
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.2.1 and SAE J429
Length (Nominal):
5"
Across Flats (Minimum):
2.175"
Order:
Machine Thread Fasteners
Shop by System of Measurement:
Inch
Diameter (Nominal):
1-1/2"
Thread Direction:
Right-Hand Thread
Point:
Chamfered Point
Thread Pitch:
6
Coating:
Zinc Plated
Head Height, Overall (Minimum):
0.902"
Head Height, Overall (Maximum):
0.974"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product80/BO016-1126X5.PDF
Brand:
Aspen Fasteners(r)
POS:
BO016-1126X5-000006,BO016-1126X5-000003
Pitch:
UNC Coarse Thread
Across Flats (Maximum):
2.250"
Across Flats (Basic):
2-1/4"
System of Measurement:
Inch
Origin:
Made in U.S.A.
Coating Color:
Clear
Diameter (Minimum):
1.488"
Shop by Material:
Steel
Diameter (Dimension):
1.5"
Product Class:
Externally Threaded Fasteners
Category:
Cap Screws
Material:
Steel
Head Style:
Hex Head
Standards and Specifications:
ASME B18.2.1 and SAE J429
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/BO016-1126X5.zip
Head Markings:
Three radial lines 120 degrees apart and manufacturer ID
Material Grade:
Grade 5
Diameter (Maximum):
1.500"
Head Style Detail:
Washer Face
Thread Length (Nominal):
3.25"
Drive Style:
External Hex Drive
Head Height, Overall:
15/16"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/BO016-1126X5
Copy Link
Print
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
    • The washer face under the head provides a precision bearing surface.
    • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1-1/2"
    • Thread Pitch: 6
    • Diameter (Dimension): 1.5"
    • Diameter (Minimum): 1.488"
    • Diameter (Maximum): 1.500"
    • Length (Nominal): 5"
    • Thread Length (Nominal): 3.25"
    • Across Flats (Basic): 2-1/4"
    • Across Flats (Minimum): 2.175"
    • Across Flats (Maximum): 2.250"
    • Head Height, Overall: 15/16"
    • Head Height, Overall (Minimum): 0.902"
    • Head Height, Overall (Maximum): 0.974"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
    • Drive Style: External Hex Drive
    • Pitch: UNC Coarse Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Grade 5
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.2.1 and SAE J429
  • 3D Product View

Contact us for availability information on part number BO016-1126X5. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
