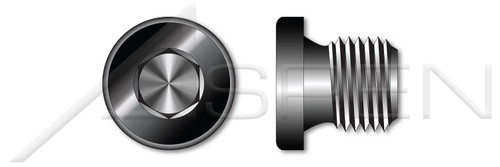

- Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings.
- Also known as Threaded Pipe Fittings or Threaded Screw Plugs.
- An internal hex socket drive is also known as an Allen drive.
- Diameter (Nominal): 1-1/4"
- Thread Pitch: 11
- Diameter (Dimension): 42mm
- Length (Nominal): 21mm
- Thread Length: 16mm
- Recess Size: 22mm
- Head Diameter: 55mm
- Head Diameter (Minimum): 48.38mm
- Head Diameter (Maximum): 49mm
- Head Height, Overall: 5mm
- Head Height, Overall (Minimum): 5mm
- Head Height, Overall (Maximum): 5.5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Threading: Straight Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Uncoated
- Standards and Specifications: DIN 908
Product UPC Code:
698435223639
- Head Height, Overall (Maximum):
- 5.5mm
- Coating:
- Uncoated
- Diameter (Nominal):
- 1-1/4"
- Diameter (Dimension):
- 42mm
- Thread Pitch:
- 11
- Length (Nominal):
- 21mm
- Thread Length:
- 16mm
- Recess Size:
- 22mm
- Material:
- Steel
- Head Diameter:
- 55mm
- Thread Direction:
- Right-Hand Thread
- Threading:
- Straight Thread
- Drive Style:
- Hex Socket Drive
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Category:
- Pipe Plugs
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Application:
- Socket Products
- Shop by Material:
- Steel
- Shop by System of Measurement:
- Metric
- Head Diameter (Minimum):
- 48.38mm
- Head Diameter (Maximum):
- 49mm
- Head Height, Overall:
- 5mm
- Head Height, Overall (Minimum):
- 5mm
- Standards and Specifications:
- DIN 908
