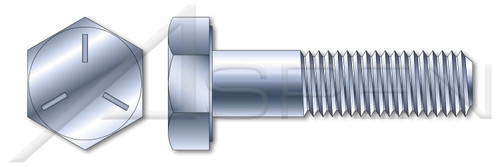

1-1/4"-7 X 12" Hex Head Cap Screws Bolts, UNC Coarse Thread, Grade 5 Steel, Zinc, Made in U.S.A.

PART NUMBER:
BO016-1147X12
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
  • The washer face under the head provides a precision bearing surface.
  • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1-1/4"
  • Thread Pitch: 7
  • Diameter (Dimension): 1.25"
  • Diameter (Minimum): 1.239"
  • Diameter (Maximum): 1.250"
  • Length (Nominal): 12"
  • Thread Length (Nominal): 3"
  • Across Flats (Basic): 1-7/8"
  • Across Flats (Minimum): 1.812"
  • Across Flats (Maximum): 1.875"
  • Head Height, Overall: 25/32"
  • Head Height, Overall (Minimum): 0.749"
  • Head Height, Overall (Maximum): 0.813"
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Head
  • Head Style Detail: Washer Face
  • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
  • Drive Style: External Hex Drive
  • Pitch: UNC Coarse Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Steel
  • Material Grade: Grade 5
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Made in U.S.A.
  • Standards and Specifications: ASME B18.2.1 and SAE J429
Buy in bulk and save
Point:
Chamfered Point
Head Style Detail:
Washer Face
Diameter (Nominal):
1-1/4"
Coating:
Zinc Plated
Origin:
Made in U.S.A.
Order:
Machine Thread Fasteners
Diameter (Minimum):
1.239"
Drive Style:
External Hex Drive
System of Measurement:
Inch
Diameter (Dimension):
1.25"
Standards and Specifications:
ASME B18.2.1 and SAE J429
Across Flats (Minimum):
1.812"
Coating Color:
Clear
Category:
Cap Screws
Material Grade:
Grade 5
Product Class:
Externally Threaded Fasteners
Head Height, Overall:
25/32"
Across Flats (Maximum):
1.875"
Length (Nominal):
12"
Shop by System of Measurement:
Inch
Diameter (Maximum):
1.250"
POS:
BO016-1147X12-000004,BO016-1147X12-000002
Shop by Material:
Steel
Head Height, Overall (Maximum):
0.813"
Thread Direction:
Right-Hand Thread
Head Markings:
Three radial lines 120 degrees apart and manufacturer ID
Brand:
Aspen Fasteners(r)
Material:
Steel
Head Height, Overall (Minimum):
0.749"
Head Style:
Hex Head
Thread Length (Nominal):
3"
Thread Pitch:
7
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/BO016-1147X12
Across Flats (Basic):
1-7/8"
Pitch:
UNC Coarse Thread
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product80/BO016-1147X12.PDF
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
    • The washer face under the head provides a precision bearing surface.
    • Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1-1/4"
    • Thread Pitch: 7
    • Diameter (Dimension): 1.25"
    • Diameter (Minimum): 1.239"
    • Diameter (Maximum): 1.250"
    • Length (Nominal): 12"
    • Thread Length (Nominal): 3"
    • Across Flats (Basic): 1-7/8"
    • Across Flats (Minimum): 1.812"
    • Across Flats (Maximum): 1.875"
    • Head Height, Overall: 25/32"
    • Head Height, Overall (Minimum): 0.749"
    • Head Height, Overall (Maximum): 0.813"
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Head
    • Head Style Detail: Washer Face
    • Head Markings: Three radial lines 120 degrees apart and manufacturer ID
    • Drive Style: External Hex Drive
    • Pitch: UNC Coarse Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Steel
    • Material Grade: Grade 5
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Made in U.S.A.
    • Standards and Specifications: ASME B18.2.1 and SAE J429

Contact us for availability information on part number BO016-1147X12. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
