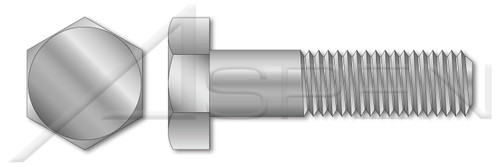

- Machine bolts are most commonly used in construction applications.
- Machine bolts tolerances are typically less precise than those of cap screws.
- Unlike cap screws, does not have a washer face or a machined point.
- ASTM A307 steel is a standard "industrial spec" low carbon grade of steel.
- A307 steel fasteners have a minimum tensile strength of 60,000 pounds per square inch.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/2"
- Thread Pitch: 13
- Diameter (Dimension): 0.5"
- Diameter (Minimum): 0.482"
- Diameter (Maximum): 0.515"
- Length (Nominal): 14"
- Thread Length (Nominal): 6"
- Across Flats (Basic): 3/4"
- Across Flats (Minimum): 0.725"
- Across Flats (Maximum): 0.75"
- Head Height, Overall: 0.344"
- Head Height, Overall (Minimum): 0.302"
- Head Height, Overall (Maximum): 0.364"
PRODUCT ATTRIBUTES- Category: Machine Bolts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Body Style: Undersized Body
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: A307 Steel
- Coating: Hot Dip Galvanized
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.1
