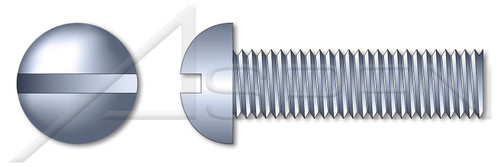

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/2"
- Thread Pitch: 13
- Diameter (Dimension): 0.500"
- Length (Nominal): 3/4"
- Thread Length (Nominal): 0.750"
- Head Diameter (Minimum): 0.766"
- Head Diameter (Maximum): 0.813"
- Head Height, Overall (Minimum): 0.332"
- Head Height, Overall (Maximum): 0.355"
- Slot Depth (Minimum): 0.159"
- Slot Depth (Maximum): 0.211"
- Slot Width (Minimum): 0.091"
- Slot Width (Maximum): 0.106"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Round Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435356351
- System of Measurement:
- Inch
- Thread Pitch:
- 13
- Thread Length:
- Full Thread
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- Thread Direction:
- Right-Hand Thread
- Brand:
- Aspen Fasteners
- Drive Style:
- Slotted Drive
- Diameter (Nominal):
- 1/2"
- Coating:
- Zinc Plated
- Order:
- Machine Thread Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC161-1213X34
- Product Class:
- Externally Threaded Fasteners
- Material:
- Steel
- Origin:
- Origin Undefined
- Shop by System of Measurement:
- Inch
- Head Style:
- Round Head
- Shop by Material:
- Steel
- Category:
- Machine Screws
- Length (Nominal):
- 3/4"
- Coating Color:
- Clear
- POS:
- SC161-1213X34-000500
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product48/SC161-1213X34.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC161-1213X34.zip
- Head Diameter (Maximum):
- 0.813"
- Head Height, Overall (Maximum):
- 0.355"
- Slot Depth (Maximum):
- 0.211"
- Slot Width (Minimum):
- 0.091"
- Slot Width (Maximum):
- 0.106"
- Thread Length (Nominal):
- 0.750"
- Head Height, Overall (Minimum):
- 0.332"
- Diameter (Dimension):
- 0.500"
- Head Diameter (Minimum):
- 0.766"
- Slot Depth (Minimum):
- 0.159"
