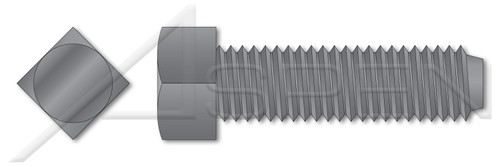

1/2"-20 X 2-1/2" Set Screws, Square Head, Fine Thread, Cup Point, Steel

PART NUMBER:
SO097-1220X212-000350
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Holds an object in place via friction between the point of the screw and the fastened material.
  • While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.
  • Square head set screws are also known as grub screws.
  • Set screws are designed to be used under compressive stress only.
  • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/2"
  • Thread Pitch: 20
  • Diameter (Dimension): 0.5"
  • Length (Nominal): 2-1/2"
  • Thread Length (Nominal): 2.5"
  • Across Flats (Basic): 0.5"
  • Across Flats (Minimum): 0.484"
  • Across Flats (Maximum): 0.5"
  • Head Height, Overall (Minimum): 0.361"
  • Head Height, Overall (Maximum): 0.389"
  • Point Width (Minimum): 0.27"
  • Point Width (Maximum): 0.291"
PRODUCT ATTRIBUTES
  • Category: Set Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Square Head
  • Drive Style: External Square Drive
  • Pitch: Fine Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Cup Point
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Material Processes: Case Hardened
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.6.2
Product UPC Code:
698435901780
Buy in bulk and save
Across Flats (Basic):
0.5"
Thread Pitch:
20
Shop by System of Measurement:
Inch
Brand:
Aspen Fasteners(r)
Diameter (Dimension):
0.5"
Thread Length:
Full Thread
Diameter (Nominal):
1/2"
Point Width (Minimum):
0.27"
Head Style:
Square Head
Head Height, Overall (Maximum):
0.389"
Thread Direction:
Right-Hand Thread
Standards and Specifications:
ASME B18.6.2
Length (Nominal):
2-1/2"
Point:
Cup Point
Thread Length (Nominal):
2.5"
Across Flats (Maximum):
0.5"
Product Class:
Externally Threaded Fasteners
Category:
Set Screws
Coating:
Uncoated
Material:
Steel
Shop by Material:
Steel
Drive Style:
External Square Drive
Across Flats (Minimum):
0.484"
Material Grade:
Low Carbon Steel
Order:
Machine Thread Fasteners
Material Processes:
Case Hardened
System of Measurement:
Inch
Pitch:
Fine Thread
Point Width (Maximum):
0.291"
Head Height, Overall (Minimum):
0.361"
  • Description
    • Holds an object in place via friction between the point of the screw and the fastened material.
    • While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.
    • Square head set screws are also known as grub screws.
    • Set screws are designed to be used under compressive stress only.
    • In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1/2"
    • Thread Pitch: 20
    • Diameter (Dimension): 0.5"
    • Length (Nominal): 2-1/2"
    • Thread Length (Nominal): 2.5"
    • Across Flats (Basic): 0.5"
    • Across Flats (Minimum): 0.484"
    • Across Flats (Maximum): 0.5"
    • Head Height, Overall (Minimum): 0.361"
    • Head Height, Overall (Maximum): 0.389"
    • Point Width (Minimum): 0.27"
    • Point Width (Maximum): 0.291"
    PRODUCT ATTRIBUTES
    • Category: Set Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Square Head
    • Drive Style: External Square Drive
    • Pitch: Fine Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Cup Point
    • Material: Steel
    • Material Grade: Low Carbon Steel
    • Material Processes: Case Hardened
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.6.2
    Product UPC Code:
    698435901780

Contact us for availability information on part number SO097-1220X212-000350. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
