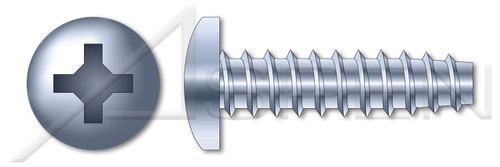

1/4"-10 X 2" Trilobe Thread Rolling Screws for Plastics, Pan Phillips Drive, 48-2 Thread, Steel, Zinc Plated and Waxed

PART NUMBER:
SC203-1410X2
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • These thread rolling screws are fully compatible generic alternatives to the branded screws.
  • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 10
  • Diameter (Dimension): 0.276"
  • Length (Nominal): 2"
PRODUCT ATTRIBUTES
  • Category: Thread Rolling Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Trilobe Triangular Body with Threads for Plastics
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Threading: 48-2 Double-Lead Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated and Waxed
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3
Drive Style:
Cruciform Recess Drive
Form and Design:
Trilobe Triangular Body with Threads for Plastics
Thread Direction:
Right-Hand Thread
Head Style:
Pan Head
Material Processes:
Case Hardened
Diameter (Dimension):
0.276"
Shop by Material:
Steel
Drive Detail:
Phillips Type H
Brand:
Aspen Fasteners
System of Measurement:
Inch
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC203-1410X2
Category:
Thread Rolling Screws
Thread Pitch:
10
Shop by System of Measurement:
Inch
Threading:
48-2 Double-Lead Thread
Coating:
Zinc Plated and Waxed
Material:
Steel
Standards and Specifications:
ASME B18.6.3
POS:
SC203-14X2-001000,SC203-1410X2-001200
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Coating Color:
Clear
Order:
Thread Cutting Fasteners
Thread Length:
Full Thread
Diameter (Nominal):
1/4"
Product Class:
Externally Threaded Fasteners
Length (Nominal):
2"
  • Description
    • These thread rolling screws are fully compatible generic alternatives to the branded screws.
    • Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1/4"
    • Thread Pitch: 10
    • Diameter (Dimension): 0.276"
    • Length (Nominal): 2"
    PRODUCT ATTRIBUTES
    • Category: Thread Rolling Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Trilobe Triangular Body with Threads for Plastics
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Threading: 48-2 Double-Lead Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated and Waxed
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3

Contact us for availability information on part number SC203-1410X2. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
