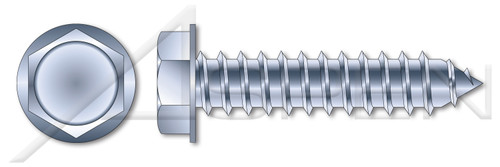

- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"
- Thread Pitch: 14
- Diameter (Dimension): 0.25"
- Length (Nominal): 4-1/2"
PRODUCT ATTRIBUTES- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: Type "AB"
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
692559737720
- Order:
- Thread Cutting Fasteners
- Diameter (Dimension):
- 0.25"
- Material:
- Steel
- Brand:
- Aspen Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC456-1414X412
- Thread Pitch:
- 14
- Thread Length:
- Full Thread
- System of Measurement:
- Inch
- Category:
- Self-Tapping Sheet Metal Screws
- Coating:
- Zinc Plated
- Standards and Specifications:
- ASME B18.6.3 and SAE J933
- Coating Color:
- Clear
- Thread Direction:
- Right-Hand Thread
- Length (Nominal):
- 4-1/2"
- Diameter (Nominal):
- 1/4"
- Product Class:
- Externally Threaded Fasteners
- Drive Style:
- External Hex Drive
- Hardness Rating:
- Rockwell C45 min. / Core=C28-C38
- Head Style:
- Hex Indented Washer Head
- Shop by Material:
- Steel
- Form and Design:
- Type "AB"
- Shop by System of Measurement:
- Inch
- Material Processes:
- Case Hardened
- POS:
- SC456-1414X412-000300
