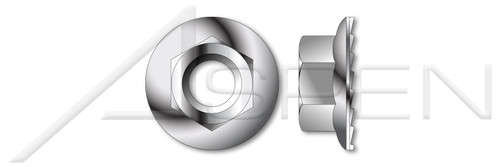

1/4"-20 Hex Flange Nuts with Serrations, Stainless Steel

PART NUMBER:
ST022-1420
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Wide flange on one side acts as an integrated washer to distribute the load of the nut.
  • Also known as a serrated face flange locknut.
  • Serrations are angled to keep from rotating in the direction that would loosen the fastener.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 20
  • Diameter (Dimension): 0.25"
  • Thread Length (Nominal): 0.236"
  • Across Flats (Basic): 0.438"
  • Height (Basic): 0.236"
  • Flange Diameter: 0.594"
PRODUCT ATTRIBUTES
  • Category: Hex Flange Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Locking Serrations
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
Diameter (Nominal):
1/4"
Brand:
Aspen Fasteners(r)
Form and Design:
Locking Serrations
Drive Style:
External Hex Drive
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
18-8 Stainless Steel
Coating:
Uncoated
System of Measurement:
Inch
Diameter (Dimension):
0.25"
Thread Pitch:
20
Thread Length (Nominal):
0.236"
Across Flats (Basic):
0.438"
Height (Basic):
0.236"
Flange Diameter:
0.594"
Shop by System of Measurement:
Inch
Shop by Material:
Stainless Steel
Product Class:
Internally Threaded Fasteners
Order:
Lock Nuts
Category:
Hex Flange Nuts
  • Description
    • Wide flange on one side acts as an integrated washer to distribute the load of the nut.
    • Also known as a serrated face flange locknut.
    • Serrations are angled to keep from rotating in the direction that would loosen the fastener.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1/4"
    • Thread Pitch: 20
    • Diameter (Dimension): 0.25"
    • Thread Length (Nominal): 0.236"
    • Across Flats (Basic): 0.438"
    • Height (Basic): 0.236"
    • Flange Diameter: 0.594"
    PRODUCT ATTRIBUTES
    • Category: Hex Flange Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Locking Serrations
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated

Contact us for availability information on part number ST022-1420. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
