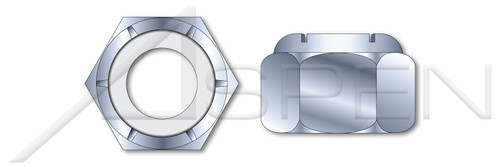

1/4"-20 Hex Nylon Insert Stop Lock Nuts, NU Heavy Full Series, Steel, Zinc Plated

PART NUMBER:
NU073-1420
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
  • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
  • Proof load 90,000 psi. minimum.
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 20
  • Diameter (Dimension): 0.25"
  • Thread Length (Nominal): 0.29"
  • Across Flats (Basic): 1/2"
  • Across Flats (Minimum): 0.489"
  • Across Flats (Maximum): 0.503"
  • Height (Basic): 0.39"
  • Height (Minimum): 0.36"
  • Height (Maximum): 0.39"
  • Product Class: Internally Threaded Fasteners
  • Order: Lock Nuts
  • Category: Hex Nylon Insert Stop Lock Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Standards and Specifications: NU Heavy Full Series
Coating Color:
Clear
Shop by System of Measurement:
Inch
Diameter (Dimension):
0.25"
Thread Direction:
Right-Hand Thread
Shop by Material:
Steel
Standards and Specifications:
NU Heavy Full Series
Thread Length:
Full Thread
Category:
Hex Nylon Insert Stop Lock Nuts
Product Class:
Internally Threaded Fasteners
System of Measurement:
Inch
Brand:
Aspen Fasteners(r)
Across Flats (Maximum):
0.503"
Drive Style:
External Hex Drive
Diameter (Nominal):
1/4"
Thread Length (Nominal):
0.29"
Height (Basic):
0.39"
Order:
Lock Nuts
Thread Pitch:
20
Across Flats (Minimum):
0.489"
Height (Minimum):
0.36"
Material Grade:
Low Carbon Steel
Across Flats (Basic):
1/2"
Coating:
Zinc Plated
Material:
Steel
Height (Maximum):
0.39"
  • Description
    • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
    • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
    • Proof load 90,000 psi. minimum.
    • Diameter (Nominal): 1/4"
    • Thread Pitch: 20
    • Diameter (Dimension): 0.25"
    • Thread Length (Nominal): 0.29"
    • Across Flats (Basic): 1/2"
    • Across Flats (Minimum): 0.489"
    • Across Flats (Maximum): 0.503"
    • Height (Basic): 0.39"
    • Height (Minimum): 0.36"
    • Height (Maximum): 0.39"
    • Product Class: Internally Threaded Fasteners
    • Order: Lock Nuts
    • Category: Hex Nylon Insert Stop Lock Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Low Carbon Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Standards and Specifications: NU Heavy Full Series

Contact us for availability information on part number NU073-1420. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
