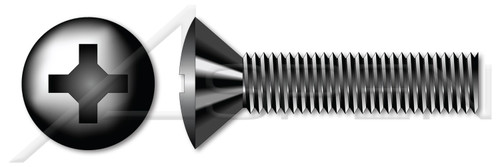

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Oval countersunk head screws are also known as raised countersunk head screws.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.250"
- Length (Nominal): 2"
- Thread Length (Nominal): 1.768"
- Drive Recess Size: #3
- Drive Recess Width: 0.284"
- Drive Recess Depth (Minimum): 0.131"
- Drive Recess Depth (Maximum): 0.156"
- Head Diameter (Minimum): 0.442"
- Head Diameter (Maximum): 0.477"
- Head Height, Overall: 0.232"
- Head Base Height: 0.153"
- Head Dome Height: 0.079"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Oval Countersunk Head
- Head Style Detail: 82 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Oxidized
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J82
Product UPC Code:
698435338616
- System of Measurement:
- Inch
- Length (Nominal):
- 2"
- Thread Pitch:
- 20
- Diameter (Nominal):
- 1/4"
- Standards and Specifications:
- ASME B18.6.3 and SAE J82
- Coating Color:
- Black
- Coating:
- Oxidized
- Head Style:
- Oval Countersunk Head
- Shop by System of Measurement:
- Inch
- Category:
- Machine Screws
- Drive Detail:
- Phillips Type H
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Material:
- Steel
- Brand:
- Aspen Fasteners
- Drive Style:
- Cruciform Recess Drive
- Head Style Detail:
- 82 Degree Countersink
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Steel
- Origin:
- Origin Undefined
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC137-1420X2
- POS:
- SC137-1420X2-001250
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product48/SC137-1420X2.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC137-1420X2.zip
- Drive Recess Depth (Maximum):
- 0.156"
- Drive Recess Depth (Minimum):
- 0.131"
- Diameter (Dimension):
- 0.250"
- Head Diameter (Minimum):
- 0.442"
- Head Height, Overall:
- 0.232"
- Drive Recess Size:
- #3
- Thread Length (Nominal):
- 1.768"
- Head Dome Height:
- 0.079"
- Drive Recess Width:
- 0.284"
- Head Diameter (Maximum):
- 0.477"
