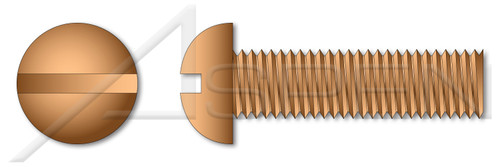

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Silicon Bronze: non-magnetic, corrosion resistant, and has good thermal and electrical conductivity.
- Offers superior corrosion resistant as compared to stainless steel and is stronger than brass.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"
- Thread Pitch: 20
- Diameter (Dimension): 0.250"
- Length (Nominal): 3"
- Thread Length (Nominal): 3.000"
- Head Diameter (Minimum): 0.443"
- Head Diameter (Maximum): 0.472"
- Head Height, Overall (Minimum): 0.160"
- Head Height, Overall (Maximum): 0.175"
- Slot Depth (Minimum): 0.082"
- Slot Depth (Maximum): 0.109"
- Slot Width (Minimum): 0.064"
- Slot Width (Maximum): 0.075"
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Round Head
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Silicon Bronze
- Coating: Uncoated
- Origin: Origin Undefined
Product UPC Code:
698435477902
- Length (Nominal):
- 3"
- Head Style:
- Round Head
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Machine Screws
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by System of Measurement:
- Inch
- Drive Style:
- Slotted Drive
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Material:
- Silicon Bronze
- Coating:
- Uncoated
- Diameter (Nominal):
- 1/4"
- Thread Pitch:
- 20
- Shop by Material:
- Silicon Bronze
- POS:
- SC570-1420X3-000010,SC570-1420X3-000003,SC570-1420X3-000075
- Brand:
- Aspen Fasteners(r)
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product59/SC570-1420X3.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SC570-1420X3.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC570-1420X3
- Slot Width (Minimum):
- 0.064"
- Slot Depth (Maximum):
- 0.109"
- Head Height, Overall (Minimum):
- 0.160"
- Diameter (Dimension):
- 0.250"
- Head Height, Overall (Maximum):
- 0.175"
- Head Diameter (Maximum):
- 0.472"
- Thread Length (Nominal):
- 3.000"
- Slot Depth (Minimum):
- 0.082"
- Head Diameter (Minimum):
- 0.443"
- Slot Width (Maximum):
- 0.075"
- Origin:
- Origin Undefined
