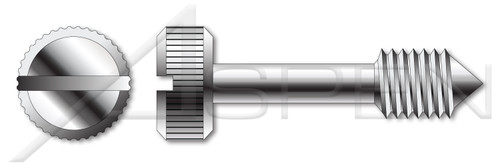

1/4"-20 X 5/8", Head Dia=9/16" Captive Panel Screws, Style 1, Knurled Head, Slotted Drive, Cone Point, Stainless Steel, Made in U.S.A.

1/4"-20 X 5/8", Head Dia=9/16" Captive Panel Screws, Style 1, Knurled Head, Slotted Drive, Cone Point, Stainless Steel, Made in U.S.A.

PART NUMBER:
FC042-1420X58X916
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 20
  • Diameter (Dimension): 0.25"
  • Length (Nominal): 5/8"
  • Thread Length (Nominal): 0.375"
  • Thread Length (Minimum): 0.36"
  • Thread Length (Maximum): 0.39"
  • Head Diameter: 9/16"
  • Head Diameter (Minimum): 0.563"
  • Head Diameter (Maximum): 0.578"
  • Head Height, Overall: 0.25"
  • Head Height, Overall (Minimum): 0.24"
  • Head Height, Overall (Maximum): 0.26"
  • Shoulder Diameter: 0.175"
  • Shoulder Diameter (Minimum): 0.17"
  • Shoulder Diameter (Maximum): 0.18"
  • Shoulder Length: 0.25"
  • Shoulder Diameter (Minimum): 0.24"
  • Shoulder Diameter (Maximum): 0.26"
  • Point Angle (Degrees): 82
  • Slot Depth (Nominal): 0.094"
  • Slot Depth (Minimum): 0.094"
  • Slot Depth (Maximum): 0.104"
  • Slot Width (Nominal): 0.063"
  • Slot Width (Minimum): 0.063"
  • Slot Width (Maximum): 0.068"
PRODUCT ATTRIBUTES
  • Category: Captive Panel Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Style 1
  • Head Style: Knurled Head
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Point: Cone Point
  • Material: Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
Thread Length (Nominal):
0.375"
Shoulder Diameter (Minimum):
0.17"
Point Angle (Degrees):
82
Slot Depth (Nominal):
0.094"
Head Style:
Knurled Head
Shoulder Diameter (Minimum):
0.24"
Slot Depth (Minimum):
0.094"
Thread Length (Minimum):
0.36"
Point:
Cone Point
Shoulder Diameter:
0.175"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product98/FC042-1420X58X916.PDF
Thread Length (Maximum):
0.39"
Product Class:
Externally Threaded Fasteners
System of Measurement:
Inch
Slot Width (Maximum):
0.068"
Shoulder Diameter (Maximum):
0.26"
Slot Depth (Maximum):
0.104"
Thread Direction:
Right-Hand Thread
Head Diameter (Maximum):
0.578"
Shoulder Diameter (Maximum):
0.18"
POS:
FC042-1420X58X916-00050,FC042-1420X58X916-00200,FC042-1420X58X916-00010,FC042-1420X58X916-00020,FC042-1420X58X916-00100
Head Height, Overall (Maximum):
0.26"
Shop by Application:
Electronic Fasteners
Shoulder Length:
0.25"
Thread Pitch:
20
Length (Nominal):
5/8"
Shop by System of Measurement:
Inch
Head Diameter (Minimum):
0.563"
Slot Width (Minimum):
0.063"
Diameter (Dimension):
0.25"
Material:
Stainless Steel
Head Diameter:
9/16"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/FC042-1420X58X916.zip
Order:
Machine Thread Fasteners
Brand:
Aspen Fasteners(r)
Diameter (Nominal):
1/4"
Head Height, Overall:
0.25"
Shop by Material:
Stainless Steel
Drive Style:
Slotted Drive
Head Height, Overall (Minimum):
0.24"
Origin:
Made in U.S.A.
Slot Width (Nominal):
0.063"
Coating:
Uncoated
Form and Design:
Style 1
Category:
Captive Panel Screws
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/FC042-1420X58X916
