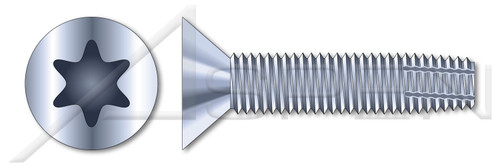

1/4"-20 X 5", Recess=T30 Thread-Cutting Screws, Type "F", Flat Head 6Lobe Torx(r) Drive, Steel, Zinc Plated and Baked

PART NUMBER:
SC290-1420X5XT30-000600
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
  • Type F point screws have a machine screw thread and a blunt tapered point.
  • Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 20
  • Length (Nominal): 5"
  • Drive Size: T30
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Thread Cutting Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 82 Degree Countersink
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Type "F"
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
692559797397
Thread Pitch:
20
Coating Color:
Clear
Category:
Thread Cutting Screws
Head Style Detail:
82 Degree Countersink
Product Class:
Externally Threaded Fasteners
Order:
Thread Cutting Fasteners
Brand:
Aspen Fasteners
Thread Direction:
Right-Hand Thread
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Drive Style:
6Lobe Drive
Coating:
Zinc Plated
Thread Length:
Full Thread
Standards and Specifications:
ASME B18.6.3 and SAE J933
Shop by System of Measurement:
Inch
System of Measurement:
Inch
Diameter (Nominal):
1/4"
Recess Size:
T30
Point:
Type "F"
Material:
Steel
Length (Nominal):
5"
Shop by Material:
Steel
Head Style:
Flat Countersunk Head
Material Processes:
Case Hardened
Drive Detail:
Torx(r) Generic Alternative
  • Description
    • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
    • Type F point screws have a machine screw thread and a blunt tapered point.
    • Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • Diameter (Nominal): 1/4"
    • Thread Pitch: 20
    • Length (Nominal): 5"
    • Drive Size: T30
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Thread Cutting Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 82 Degree Countersink
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Type "F"
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3 and SAE J933
    Product UPC Code:
    692559797397
