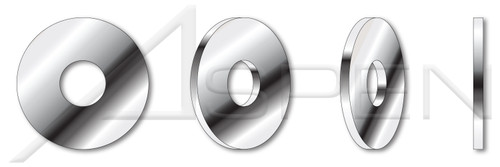

1/4" Flat Washers, USS Pattern, Stainless Steel

1/4" Flat Washers, USS Pattern, Stainless Steel

PART NUMBER:
ST208-14
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • USS flat washers are also known as plain washers or plate washers.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/4"
  • Diameter (Dimension): 0.25"
  • Inside Diameter (Nominal): 5/16"
  • Inside Diameter (Minimum): 0.307"
  • Inside Diameter (Maximum): 0.327"
  • Outside Diameter (Nominal): 3/4"
  • Outside Diameter (Minimum): 0.727"
  • Outside Diameter (Maximum): 0.749"
  • Thickness (Nominal): 1/16"
  • Thickness (Minimum): 0.051"
  • Thickness (Maximum): 0.080"
PRODUCT ATTRIBUTES
  • Category: Standard Flat Washers
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: USS Flat Washer Dimensions
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.21.1-2009
Material Grade:
18-8 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
ASME B18.21.1-2009
Diameter (Nominal):
1/4"
Diameter (Dimension):
0.25"
Inside Diameter (Nominal):
5/16"
Inside Diameter (Minimum):
0.307"
Inside Diameter (Maximum):
0.327"
Outside Diameter (Nominal):
3/4"
Outside Diameter (Minimum):
0.727"
Shop by System of Measurement:
Inch
Shop by Material:
Stainless Steel
Product Class:
Washers
Order:
Flat Washers
Category:
Standard Flat Washers
System of Measurement:
Inch
Brand:
Aspen Fasteners
Form and Design:
USS Flat Washer Dimensions
Material:
Stainless Steel
Outside Diameter (Maximum):
0.749"
Thickness (Nominal):
1/16"
Thickness (Minimum):
0.051"
Thickness (Maximum):
0.080"
POS:
ST208-14-001000,ST208-14-002000
  • Description
    • USS flat washers are also known as plain washers or plate washers.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • The nominal diameter is the bolt size to use for this flat washer.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1/4"
    • Diameter (Dimension): 0.25"
    • Inside Diameter (Nominal): 5/16"
    • Inside Diameter (Minimum): 0.307"
    • Inside Diameter (Maximum): 0.327"
    • Outside Diameter (Nominal): 3/4"
    • Outside Diameter (Minimum): 0.727"
    • Outside Diameter (Maximum): 0.749"
    • Thickness (Nominal): 1/16"
    • Thickness (Minimum): 0.051"
    • Thickness (Maximum): 0.080"
    PRODUCT ATTRIBUTES
    • Category: Standard Flat Washers
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: USS Flat Washer Dimensions
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.21.1-2009
