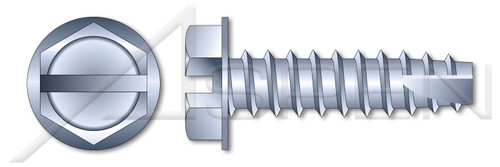

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"
- Thread Pitch: 14
- Diameter (Dimension): 0.25"
- Length (Nominal): 1/2"
PRODUCT ATTRIBUTES- Category: Thread Cutting Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Hex Indented Washer Head
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "25"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
698435387058
- Thread Pitch:
- 14
- Point:
- Type "25"
- Product Class:
- Externally Threaded Fasteners
- Brand:
- Aspen Fasteners
- Category:
- Thread Cutting Screws
- Shop by Material:
- Steel
- Diameter (Nominal):
- 1/4"
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SC287-14X12
- Diameter (Dimension):
- 0.25"
- System of Measurement:
- Inch
- Drive Style:
- Hex Slotted Drive
- Hardness Rating:
- Rockwell C45 min. / Core=C28-C38
- Length (Nominal):
- 1/2"
- Order:
- Thread Cutting Fasteners
- Coating:
- Zinc Plated and Baked
- Head Style:
- Hex Indented Washer Head
- Thread Length:
- Full Thread
- Coating Color:
- Clear
- Material:
- Steel
- Shop by System of Measurement:
- Inch
- Standards and Specifications:
- ASME B18.6.3 and SAE J933
- Material Processes:
- Case Hardened
- Thread Direction:
- Right-Hand Thread
- Origin:
- Origin Undefined
- POS:
- SC287-14X12-003000
