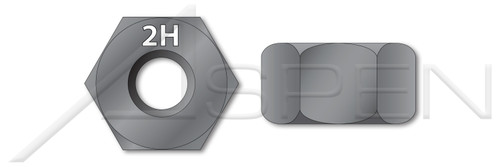

- Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1"
- Thread Pitch: 8
- Diameter (Dimension): 1"
- Thread Length (Nominal): 0.984"
- Across Flats (Basic): 1-5/8"
- Across Flats (Minimum): 1.575"
- Across Flats (Maximum): 1.625"
- Height (Basic): 63/64"
- Height (Minimum): 0.956"
- Height (Maximum): 1.012"
PRODUCT ATTRIBUTES- Category: Hex Heavy Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Form and Design: Chamfered One Side, Washer Faced
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade 2H
- Coating: Uncoated
- Standards and Specifications: ASTM A194
Product UPC Code:
698435274181
- Material:
- Steel
- Category:
- Hex Heavy Nuts
- Shop by System of Measurement:
- Inch
- Drive Style:
- External Hex Drive
- Height (Minimum):
- 0.956"
- Across Flats (Maximum):
- 1.625"
- Thread Length (Nominal):
- 0.984"
- System of Measurement:
- Inch
- Across Flats (Basic):
- 1-5/8"
- Coating:
- Uncoated
- Shop by Material:
- Steel
- Standards and Specifications:
- ASTM A194
- Thread Length:
- Full Thread
- Height (Basic):
- 63/64"
- Thread Pitch:
- 8
- Form and Design:
- Chamfered One Side, Washer Faced
- Material Grade:
- Grade 2H
- Brand:
- Aspen Fasteners(r)
- Diameter (Nominal):
- 1"
- Diameter (Dimension):
- 1"
- Across Flats (Minimum):
- 1.575"
- Order:
- Nuts
- Product Class:
- Internally Threaded Fasteners
- Height (Maximum):
- 1.012"
- Thread Direction:
- Right-Hand Thread
