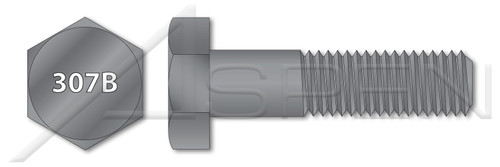

- Heavy hex bolts have heads that are wider across flats and higher than standard hex bolts.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1"
- Thread Pitch: 8
- Diameter (Dimension): 1"
- Length (Nominal): 5-1/2"
- Thread Length (Nominal): 2.25"
- Across Flats (Basic): 1-5/8"
- Across Flats (Minimum): 1.575"
- Across Flats (Maximum): 1.625"
- Head Height, Overall: 43/64"
- Head Height, Overall (Minimum): 0.591"
- Head Height, Overall (Maximum): 0.700"
PRODUCT ATTRIBUTES- Category: Hex Bolts, Heavy
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Grade B Steel
- Coating: Uncoated
- Standards and Specifications: ASTM A307
Product UPC Code:
692559973395
- Drive Style:
- External Hex Drive
- Across Flats (Basic):
- 1-5/8"
- System of Measurement:
- Inch
- Category:
- Hex Bolts, Heavy
- Material Grade:
- Grade B Steel
- Across Flats (Maximum):
- 1.625"
- Thread Length (Nominal):
- 2.25"
- Thread Pitch:
- 8
- Head Style:
- Hex Head
- Across Flats (Minimum):
- 1.575"
- Diameter (Dimension):
- 1"
- Shop by Material:
- Steel
- Brand:
- Aspen Fasteners
- Head Height, Overall:
- 43/64"
- Order:
- Machine Thread Fasteners
- Head Height, Overall (Maximum):
- 0.700"
- Coating:
- Uncoated
- Head Height, Overall (Minimum):
- 0.591"
- Length (Nominal):
- 5-1/2"
- Material:
- Steel
- Thread Direction:
- Right-Hand Thread
- Diameter (Nominal):
- 1"
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- ASTM A307
- Shop by System of Measurement:
- Inch
- POS:
- BO065-18X512-000030
