- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.

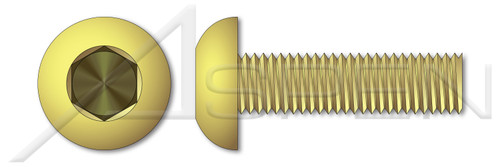

- Button head screws have a wider bearing surface and maintain a low head profile.
- An internal hex socket drive is also known as an Allen drive.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #10
- Thread Pitch: 24
- Diameter (Dimension): 0.19"
- Length (Nominal): 1/4"
- Thread Length (Nominal): 0.25"
- Drive Recess Size: 1/8"
- Drive Recess Width: 0.125"
- Drive Recess Depth: 0.07"
- Head Diameter (Minimum): 0.347"
- Head Diameter (Maximum): 0.361"
- Head Height, Overall (Minimum): 0.091"
- Head Height, Overall (Maximum): 0.101"
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Button Head
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Origin: Origin Undefined
Product UPC Code:
698435529168
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Diameter (Nominal):
- #10
- Thread Pitch:
- 24
- Length (Nominal):
- 1/4"
- Coating:
- Uncoated
- Material:
- Brass
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Drive Style:
- Hex Socket Drive
- Head Style:
- Button Head
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Socket Head Cap Screws
- Shop by System of Measurement:
- Inch
- Shop by Material:
- Brass
- Shop by Application:
- Socket Products
- POS:
- SO078-1024X14-000040
- Thread Length (Nominal):
- 0.25"
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/SO078-1024X14.zip
- Head Diameter (Maximum):
- 0.361"
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/SO078-1024X14
- Head Height, Overall (Minimum):
- 0.091"
- Drive Recess Width:
- 0.125"
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product72/SO078-1024X14.PDF
- Head Diameter (Minimum):
- 0.347"
- Drive Recess Depth:
- 0.07"
- Head Height, Overall (Maximum):
- 0.101"
- Drive Recess Size:
- 1/8"
- Diameter (Dimension):
- 0.19"
- Origin:
- Origin Undefined
