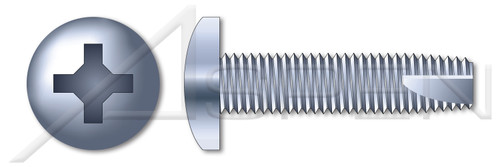

#10-24 X 1/4" Thread-Cutting Screws, Type "23", Pan Phillips Drive, Steel, Zinc Plated

PART NUMBER:
SC264-1024X14-009000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
  • Type 23 point screws provides maximum thread cutting area and exceptional chip clearing.
  • Diameter (Nominal): #10
  • Thread Pitch: 24
  • Length (Nominal): 1/4"
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Thread Cutting Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Type "23"
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
698435381308
Coating:
Zinc Plated
Material Processes:
Case Hardened
Length (Nominal):
1/4"
Diameter (Nominal):
#10
Standards and Specifications:
ASME B18.6.3 and SAE J933
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Thread Pitch:
24
Material:
Steel
Point:
Type "23"
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style:
Pan Head
Brand:
Aspen Fasteners
System of Measurement:
Inch
Category:
Thread Cutting Screws
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Coating Color:
Clear
POS:
SC264-1024X14-009000
  • Description
    • Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
    • Type 23 point screws provides maximum thread cutting area and exceptional chip clearing.
    • Diameter (Nominal): #10
    • Thread Pitch: 24
    • Length (Nominal): 1/4"
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Thread Cutting Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Type "23"
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3 and SAE J933
    Product UPC Code:
    698435381308

Contact us for availability information on part number SC264-1024X14-009000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
