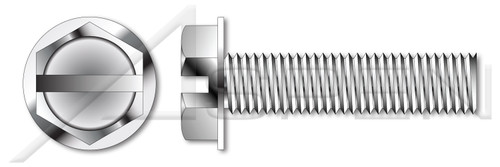

#10-24 X 7/8" Machine Screws, Hex Slotted Indented Washer Head, Full Thread, Stainless Steel

#10-24 X 7/8" Machine Screws, Hex Slotted Indented Washer Head, Full Thread, Stainless Steel

PART NUMBER:
ST103-1024X78-000750
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #10
  • Thread Pitch: 24
  • Diameter (Dimension): 0.190"
  • Length (Nominal): 7/8"
  • Thread Length (Nominal): 0.875"
  • Across Flats (Minimum): 0.305"
  • Across Flats (Maximum): 0.312"
  • Head Height, Overall (Minimum): 0.105"
  • Head Height, Overall (Maximum): 0.120"
  • Flange Diameter (Minimum): 0.019"
  • Flange Diameter (Maximum): 0.031"
  • Flange Thickness (Minimum): 0.384"
  • Flange Thickness (Maximum): 0.414"
  • Slot Depth (Minimum): 0.052"
  • Slot Depth (Maximum): 0.080"
  • Slot Width (Minimum): 0.050"
  • Slot Width (Maximum): 0.060"
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners
  • Head Style: Hex Indented Washer Head
  • Drive Style: Hex Slotted Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: ASME B18.6.3
Product UPC Code:
698435643499
