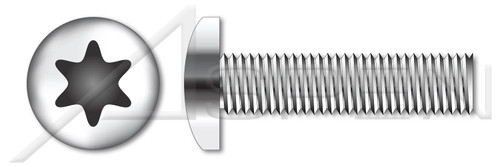

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A 6-lobe recess is also known as a hexalobular internal drive.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.190"
- Length (Nominal): 1-1/2"
- Thread Length (Nominal): 1.500"
- Drive Recess Size: T25
- Drive Recess Width: 0.178"
- Drive Recess Depth (Minimum): 0.070"
- Drive Recess Depth (Maximum): 0.085"
- Head Diameter (Minimum): 0.357"
- Head Diameter (Maximum): 0.373"
- Head Height, Overall (Minimum): 0.122"
- Head Height, Overall (Maximum): 0.133"
- Head Radius: 0.020"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Thread Direction:
- Right-Hand Thread
- Material Grade:
- 18-8 Stainless Steel
- Material:
- Stainless Steel
- Thread Length:
- Full Thread
- Drive Detail:
- Torx(r) Generic Alternative
- Drive Style:
- 6Lobe Drive
- Head Style:
- Pan Head
- Brand:
- Aspen Fasteners
- System of Measurement:
- Inch
- Category:
- Machine Screws
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Stainless Steel
- Shop by System of Measurement:
- Inch
- Coating:
- Uncoated
- Length (Nominal):
- 1-1/2"
- Thread Pitch:
- 32
- Diameter (Nominal):
- #10
- Origin:
- Origin Undefined
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ST094-1032X112
- POS:
- ST094-1032X112-000200,ST094-1032X112-001500
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ST094-1032X112.zip
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product46/ST094-1032X112.PDF
- Head Diameter (Minimum):
- 0.357"
- Drive Recess Depth (Minimum):
- 0.070"
- Head Diameter (Maximum):
- 0.373"
- Drive Recess Depth (Maximum):
- 0.085"
- Diameter (Dimension):
- 0.190"
- Thread Length (Nominal):
- 1.500"
- Head Height, Overall (Maximum):
- 0.133"
- Drive Recess Width:
- 0.178"
- Drive Recess Size:
- T25
- Head Height, Overall (Minimum):
- 0.122"
-
Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A 6-lobe recess is also known as a hexalobular internal drive.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.190"
- Length (Nominal): 1-1/2"
- Thread Length (Nominal): 1.500"
- Drive Recess Size: T25
- Drive Recess Width: 0.178"
- Drive Recess Depth (Minimum): 0.070"
- Drive Recess Depth (Maximum): 0.085"
- Head Diameter (Minimum): 0.357"
- Head Diameter (Maximum): 0.373"
- Head Height, Overall (Minimum): 0.122"
- Head Height, Overall (Maximum): 0.133"
- Head Radius: 0.020"
- Category: Machine Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
-
3D Product View
