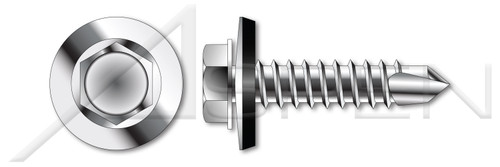

#12-14 X 1-1/2" (#3 pt) Self-Drilling Screws, Hex Indented Washer Head, with Bonded Sealing Washer, Corrosion Resistant Coating, Made in U.S.A., DFARS

#12-14 X 1-1/2" (#3 pt) Self-Drilling Screws, Hex Indented Washer Head, with Bonded Sealing Washer, Corrosion Resistant Coating, Made in U.S.A., DFARS

PART NUMBER:
SC193-N1214X112X3-002000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
  • Bonded neoprene sealing washer creates a leakproof seal.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #12
  • Thread Pitch: 14
  • Diameter (Dimension): 0.2188"
  • Length (Nominal): 1-1/2"
  • Thread Length (Nominal): 1.23"
  • Drill Size: #3
  • Outside Diameter (Nominal): 0.562"
  • Across Flats (Basic): 5/16"
  • Head Height, Overall: 0.184"
  • Flange Diameter: 0.432"
PRODUCT ATTRIBUTES
  • Category: Self-Drilling Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Head Style: Hex Indented Washer Head
  • Head Style Detail: with Bonded Sealing Washer
  • Drive Style: External Hex Drive
  • Thread Direction: Right-Hand Thread
  • Point: Self-Drilling Point
  • Material: Steel
  • Material Grade: AISI-SAE C1022 Steel
  • Material Processes: Case Hardened
  • Coating: Zinc Base and Aluminum Top Coat
  • Coating Color: High Luster Silver
  • Coating Standard: 1,000 Hour Salt Spray Rated
  • Origin: Made in U.S.A.
  • Standards and Specifications: SAE J78, IFI-113, ASTM C1513, DFARS
Product UPC Code:
692559766874
Diameter (Dimension):
0.2188"
Material Processes:
Case Hardened
Head Style:
Hex Indented Washer Head
Shop by System of Measurement:
Inch
Coating Color:
High Luster Silver
Coating:
Zinc Base and Aluminum Top Coat
Outside Diameter (Nominal):
0.562"
Category:
Self-Drilling Screws
Shop by Application:
Construction Fasteners
Order:
Thread Cutting Fasteners
Coating Standard:
1,000 Hour Salt Spray Rated
Origin:
Made in U.S.A.
Product Class:
Externally Threaded Fasteners
Drive Style:
External Hex Drive
Thread Length (Nominal):
1.23"
Point:
Self-Drilling Point
Flange Diameter:
0.432"
Head Height, Overall:
0.184"
Length (Nominal):
1-1/2"
System of Measurement:
Inch
Brand:
Aspen Fasteners
Across Flats (Basic):
5/16"
Diameter (Nominal):
#12
Material:
Steel
Head Style Detail:
with Bonded Sealing Washer
Shop by Material:
Steel
Standards and Specifications:
SAE J78, IFI-113, ASTM C1513, DFARS
Material Grade:
AISI-SAE C1022 Steel
Thread Pitch:
14
Thread Direction:
Right-Hand Thread
Drill Size:
#3
POS:
SC193-N1214X112X3-002000
  • Description
    • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
    • Bonded neoprene sealing washer creates a leakproof seal.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #12
    • Thread Pitch: 14
    • Diameter (Dimension): 0.2188"
    • Length (Nominal): 1-1/2"
    • Thread Length (Nominal): 1.23"
    • Drill Size: #3
    • Outside Diameter (Nominal): 0.562"
    • Across Flats (Basic): 5/16"
    • Head Height, Overall: 0.184"
    • Flange Diameter: 0.432"
    PRODUCT ATTRIBUTES
    • Category: Self-Drilling Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Head Style: Hex Indented Washer Head
    • Head Style Detail: with Bonded Sealing Washer
    • Drive Style: External Hex Drive
    • Thread Direction: Right-Hand Thread
    • Point: Self-Drilling Point
    • Material: Steel
    • Material Grade: AISI-SAE C1022 Steel
    • Material Processes: Case Hardened
    • Coating: Zinc Base and Aluminum Top Coat
    • Coating Color: High Luster Silver
    • Coating Standard: 1,000 Hour Salt Spray Rated
    • Origin: Made in U.S.A.
    • Standards and Specifications: SAE J78, IFI-113, ASTM C1513, DFARS
    Product UPC Code:
    692559766874

Contact us for availability information on part number SC193-N1214X112X3-002000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
