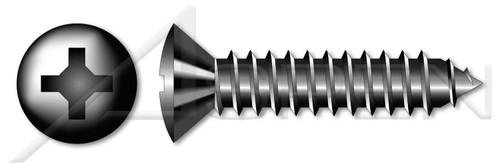

#12-14 X 1-1/4" Self-Tapping Sheet Metal Screws, Type "AB", Oval Phillips Drive, Steel, Black Oxide

PART NUMBER:
SC371-N1214X114-003000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • Diameter (Nominal): #12
  • Thread Pitch: 14
  • Diameter (Dimension): 0.2188"
  • Length (Nominal): 1-1/4"
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Type "AB"
  • Head Style: Oval Countersunk Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Processes: Case Hardened
  • Coating: Oxidized
  • Coating Color: Black
  • Hardness Rating: Rockwell C45 min. / Core=C28-C38
  • Standards and Specifications: ASME B18.6.3 and SAE J933
Product UPC Code:
692559735276
Coating:
Oxidized
Coating Color:
Black
Hardness Rating:
Rockwell C45 min. / Core=C28-C38
Standards and Specifications:
ASME B18.6.3 and SAE J933
Diameter (Nominal):
#12
Diameter (Dimension):
0.2188"
Thread Pitch:
14
Length (Nominal):
1-1/4"
Material Processes:
Case Hardened
Material:
Steel
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style:
Oval Countersunk Head
Shop by System of Measurement:
Inch
Shop by Material:
Steel
Product Class:
Externally Threaded Fasteners
Order:
Thread Cutting Fasteners
Category:
Self-Tapping Sheet Metal Screws
System of Measurement:
Inch
Brand:
Aspen Fasteners
Form and Design:
Type "AB"
POS:
SC371-N1214X114-003000
  • Description
    • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
    • Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
    • Oval countersunk head screws are also known as raised countersunk head screws.
    • Diameter (Nominal): #12
    • Thread Pitch: 14
    • Diameter (Dimension): 0.2188"
    • Length (Nominal): 1-1/4"
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Self-Tapping Sheet Metal Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Type "AB"
    • Head Style: Oval Countersunk Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Processes: Case Hardened
    • Coating: Oxidized
    • Coating Color: Black
    • Hardness Rating: Rockwell C45 min. / Core=C28-C38
    • Standards and Specifications: ASME B18.6.3 and SAE J933
    Product UPC Code:
    692559735276

Contact us for availability information on part number SC371-N1214X114-003000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
