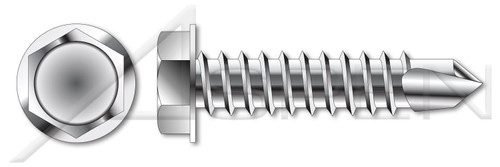

- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): #12
- Thread Pitch: 14
- Diameter (Dimension): 0.2188"
- Length (Nominal): 1"
- Thread Length (Nominal): 0.73"
- Drill Size: #3
- Across Flats (Basic): 5/16"
- Head Height, Overall: 0.184"
- Flange Diameter: 0.432"
PRODUCT ATTRIBUTES- Category: Self-Drilling Screws
- System of Measurement: Inch
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: External Hex Drive
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Steel
- Material Grade: AISI-SAE C1022 Steel
- Material Processes: Case Hardened
- Coating: Zinc Base and Aluminum Top Coat
- Coating Color: High Luster Silver
- Coating Standard: 1,000 Hour Salt Spray Rated
- Origin: Made in U.S.A.
- Standards and Specifications: SAE J78, IFI-113, ASTM C1513, DFARS
Product UPC Code:
692559767086
- Shop by Application:
- Construction Fasteners
- Length (Nominal):
- 1"
- Material Processes:
- Case Hardened
- Diameter (Nominal):
- #12
- Shop by System of Measurement:
- Inch
- Drill Size:
- #3
- Thread Direction:
- Right-Hand Thread
- Across Flats (Basic):
- 5/16"
- Flange Diameter:
- 0.432"
- Material Grade:
- AISI-SAE C1022 Steel
- Category:
- Self-Drilling Screws
- Head Height, Overall:
- 0.184"
- Coating Standard:
- 1,000 Hour Salt Spray Rated
- Shop by Material:
- Steel
- Order:
- Thread Cutting Fasteners
- Drive Style:
- External Hex Drive
- Coating:
- Zinc Base and Aluminum Top Coat
- Origin:
- Made in U.S.A.
- Point:
- Self-Drilling Point
- Thread Pitch:
- 14
- Product Class:
- Externally Threaded Fasteners
- Thread Length (Nominal):
- 0.73"
- Brand:
- Aspen Fasteners
- Material:
- Steel
- Diameter (Dimension):
- 0.2188"
- System of Measurement:
- Inch
- Standards and Specifications:
- SAE J78, IFI-113, ASTM C1513, DFARS
- Coating Color:
- High Luster Silver
- Head Style:
- Hex Indented Washer Head
- POS:
- SC194-N1214X1X3-004000
