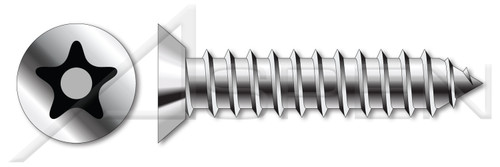

#12 X 1/2" Self-Tapping Sheet Metal Screws, Flat Countersunk Undercut Head Tamper-Resistant Torx Plus(r) Pin Drive, Stainless Steel

#12 X 1/2" Self-Tapping Sheet Metal Screws, Flat Countersunk Undercut Head Tamper-Resistant Torx Plus(r) Pin Drive, Stainless Steel

PART NUMBER:
TR016-12X1220
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #12
  • Diameter (Dimension): 0.216"
  • Length (Nominal): 1/2"
  • Drive Size: 20IP
  • Head Diameter: 0.450"
  • Head Height, Overall: 0.135"
PRODUCT ATTRIBUTES
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Type "AB"
  • Head Style: Flat Countersunk Undercut Head
  • Head Style Detail: 82 Degree Countersink
  • Drive Style: Tamper-Resistant 5Lobe Pin Drive
  • Drive Detail: Torx Plus® Brand
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 302 Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Inch
Head Height, Overall:
0.135"
Head Diameter:
0.450"
System of Measurement:
Inch
Brand:
Aspen Fasteners(r)
Form and Design:
Type "AB"
Head Style:
Flat Countersunk Undercut Head
Head Style Detail:
82 Degree Countersink
Drive Style:
Tamper-Resistant 5Lobe Pin Drive
Drive Detail:
Torx Plus(r) Brand
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
AISI 302 Stainless Steel
Coating:
Uncoated
Origin:
Made in U.S.A.
Diameter (Nominal):
#12
Diameter (Dimension):
0.216"
Length (Nominal):
1/2"
Recess Size:
20IP
Category:
Self-Tapping Sheet Metal Screws
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Application:
Tamper-Resistant Security Fasteners
  • Description
    • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
    • Type "AB" sheet metal tapping screws feature a sharp point and fine threading.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #12
    • Diameter (Dimension): 0.216"
    • Length (Nominal): 1/2"
    • Drive Size: 20IP
    • Head Diameter: 0.450"
    • Head Height, Overall: 0.135"
    PRODUCT ATTRIBUTES
    • Category: Self-Tapping Sheet Metal Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Type "AB"
    • Head Style: Flat Countersunk Undercut Head
    • Head Style Detail: 82 Degree Countersink
    • Drive Style: Tamper-Resistant 5Lobe Pin Drive
    • Drive Detail: Torx Plus® Brand
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 302 Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.

Contact us for availability information on part number TR016-12X1220. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
