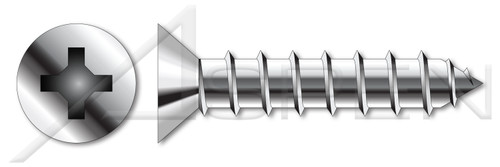

#14 X 1-1/4" Self-Tapping Sheet Metal Screws, Type "A", Flat Phillips Drive, Stainless Steel

PART NUMBER:
ST146-14X114
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Type "A" sheet metal tapping screws feature a sharp point and coarse threading.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #14
  • Thread Pitch: 10
  • Diameter (Dimension): 0.242"
  • Major Diameter: 0.254"
  • Minor Diameter: 0.178"
  • Length (Nominal): 1-1/4"
  • Thread Length (Nominal): 1.102"
  • Drive Size: #3
  • Head Diameter: 0.462"
  • Head Height, Overall: 0.148"
PRODUCT ATTRIBUTES
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Type "A"
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 82 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: 18-8 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.6.3
Major Diameter:
0.254"
Head Height, Overall:
0.148"
Head Diameter:
0.462"
Recess Size:
#3
Thread Length (Nominal):
1.102"
Length (Nominal):
1-1/4"
Thread Pitch:
10
Minor Diameter:
0.178"
Diameter (Dimension):
0.242"
Diameter (Nominal):
#14
Standards and Specifications:
ASME B18.6.3
Coating:
Uncoated
Material Grade:
18-8 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style Detail:
82 Degree Countersink
Head Style:
Flat Countersunk Head
Form and Design:
Type "A"
Brand:
Aspen Fasteners
System of Measurement:
Inch
Category:
Self-Tapping Sheet Metal Screws
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Inch
POS:
ST146-14X114-001000,ST146-N14X114-000600
  • Description
    • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
    • Type "A" sheet metal tapping screws feature a sharp point and coarse threading.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #14
    • Thread Pitch: 10
    • Diameter (Dimension): 0.242"
    • Major Diameter: 0.254"
    • Minor Diameter: 0.178"
    • Length (Nominal): 1-1/4"
    • Thread Length (Nominal): 1.102"
    • Drive Size: #3
    • Head Diameter: 0.462"
    • Head Height, Overall: 0.148"
    PRODUCT ATTRIBUTES
    • Category: Self-Tapping Sheet Metal Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Type "A"
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 82 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: 18-8 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ASME B18.6.3

Contact us for availability information on part number ST146-14X114. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
