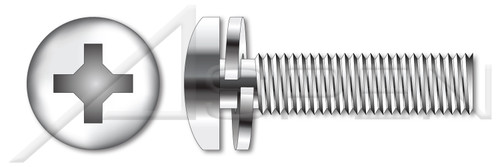

#2-56 X 3/16" SEMS Split Lock Washer Machine Screws, Pan Phillips Drive, AISI 304 Stainless Steel (18-8), Washer Material 410 Stainless Steel

$681.45
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ST116-N256X316-005000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
  • Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): #2
  • Thread Pitch: 56
  • Diameter (Dimension): 0.0781"
  • Length (Nominal): 3/16"
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Machine Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
  • Head Style: Pan Head
  • Head Style Detail: Free-Spinning 410 Stainless Steel Split Lock Washer
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 304 Stainless Steel (18-8)
  • Coating: Uncoated
  • Standards and Specifications: ASME B18.13
Product UPC Code:
692559745855
Buy in Bulk and Save
System of Measurement:
Inch
Diameter (Nominal):
#2
Standards and Specifications:
ASME B18.13
Coating:
Uncoated
Material Grade:
AISI 304 Stainless Steel (18-8)
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Phillips Type H
Drive Style:
Cruciform Recess Drive
Head Style Detail:
Free-Spinning 410 Stainless Steel Split Lock Washer
Head Style:
Pan Head
Form and Design:
SEMS Screws Pre-Assembled with a Captive Lock Washer
Brand:
Aspen Fasteners(r)
Category:
Machine Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Inch
Length (Nominal):
3/16"
Thread Pitch:
56
Diameter (Dimension):
0.0781"

Contact us for availability information on part number ST116-N256X316-005000. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
